KINGWAY 3.5 Inch 320x480 Liquid Crystal Display Ips Tft Lcd Screen

Model: HW-035PCZ015-01

Display Size: 3.5 inch

Outline Dimension: 54.5*83*2.2 mm

Active Area: 48.96*73.44 mm

Display Type: IPS

Resolution: 320*RGB*480

Screen Color: 16.7M

Driver IC: LIL9488

Viewing Direction: All O'clock

Interface: MCU

Backlight Type: 6pcs, 120mA(20mA/LED)

LCM Brightness: 300 cd/m2 Min, 350 cd/m2 TYP

LCM Uniformity: 75% MIN

Work Temperature: -20~+70℃

Storage Temperature: -30~+80℃


View details
Online ordering
Description

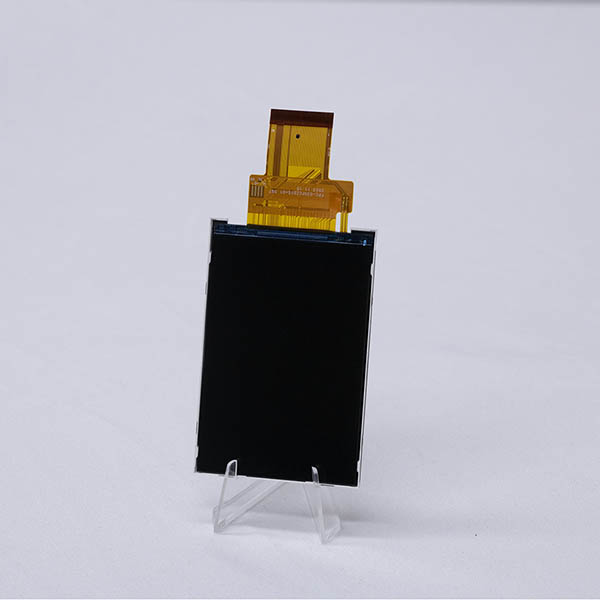

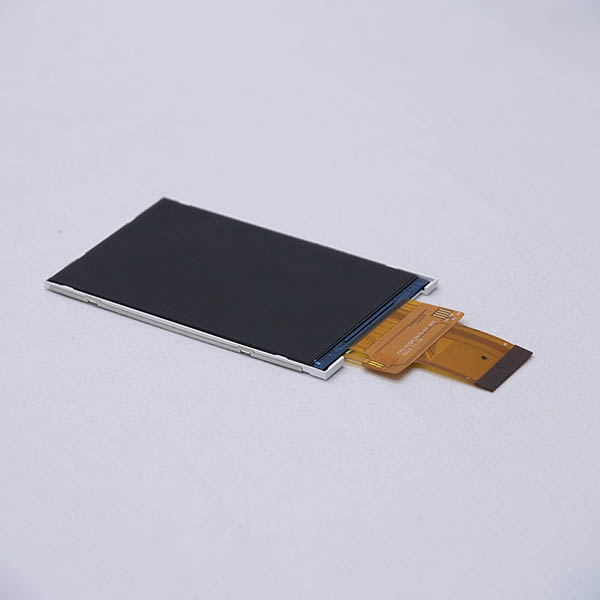

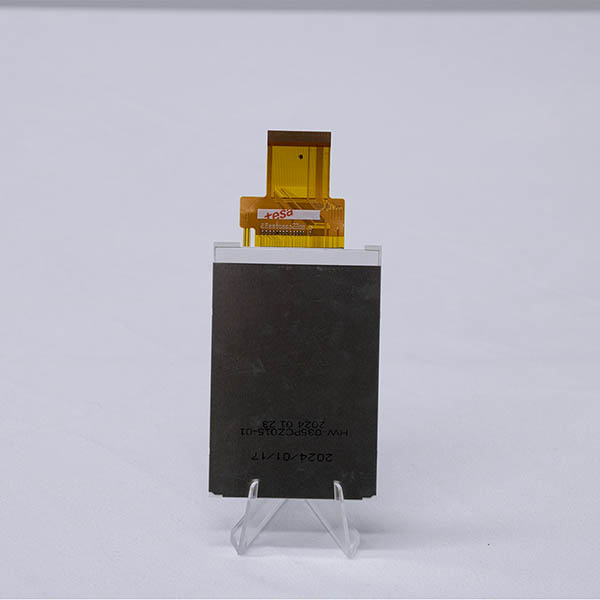

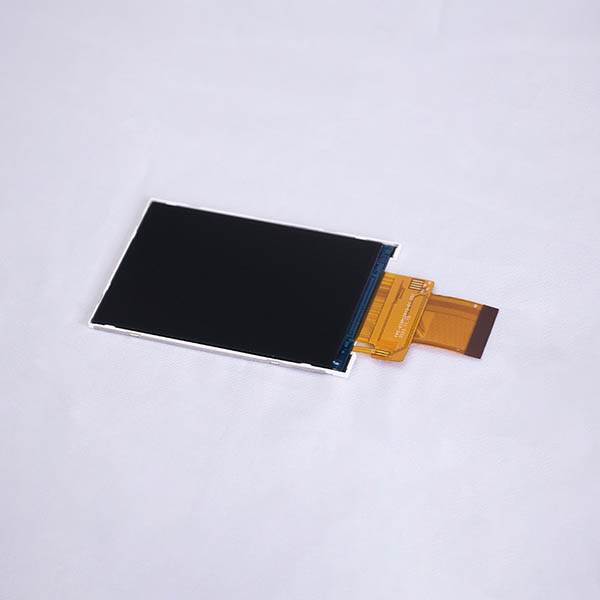

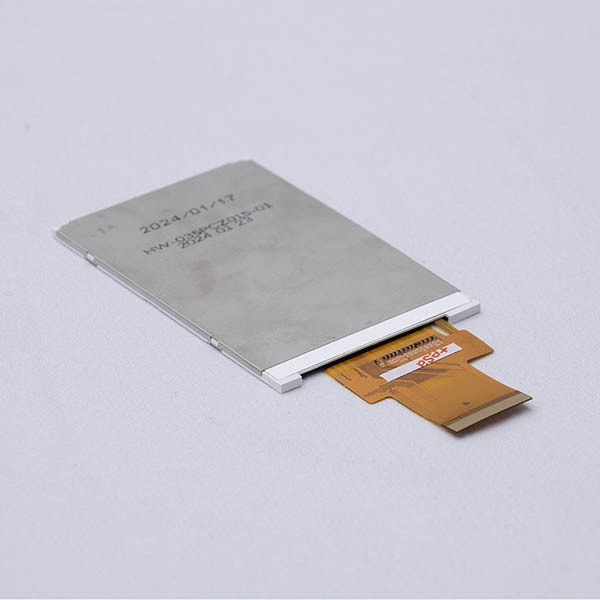

The HW-035PCZ015-01 is a 3.5-inch IPS TFT LCD display with a resolution of 320(RGB) x 480, providing rich visuals with 16.7M colors. The active area is 48.96 x 73.44 mm, and the overall outline dimension is 54.5 x 83 x 2.2 mm. This display offers full viewing angles, ensuring consistent image quality from all directions. Powered by the LIL9488 driver IC and supporting an MCU interface, it delivers reliable performance. With a typical brightness of 350 cd/m² and 75% uniformity, it ensures clear and bright images.

This display is well-suited for handheld devices, industrial applications, and consumer electronics where wide viewing angles and color accuracy are essential.

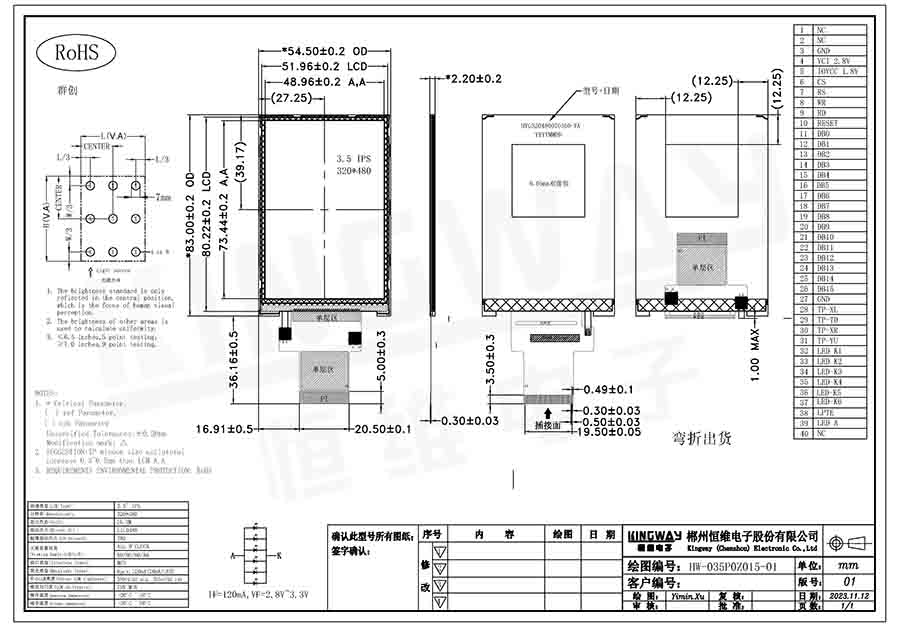

51. HW-035PCZ015-01.jpg


It is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* Backlight with different brightness is customized according to your request.

* Capacitive & Resistive touch panel/ Demo board is available for your option.

* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
