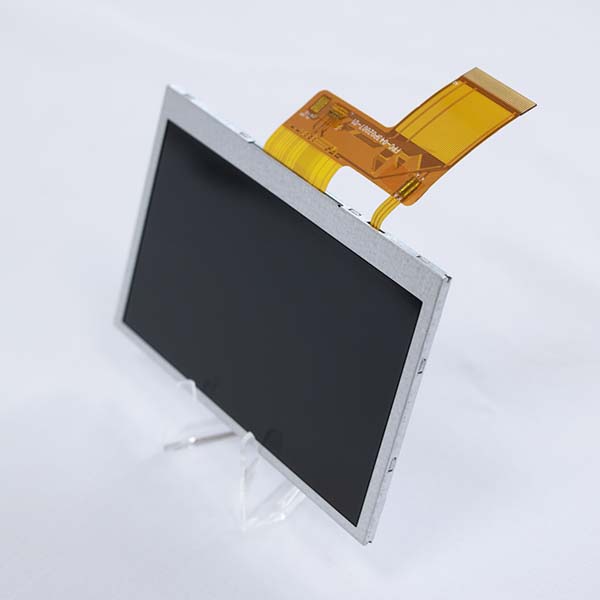

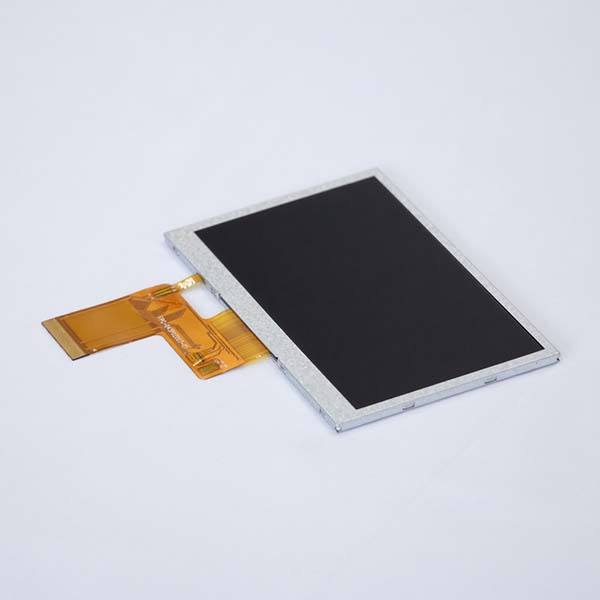

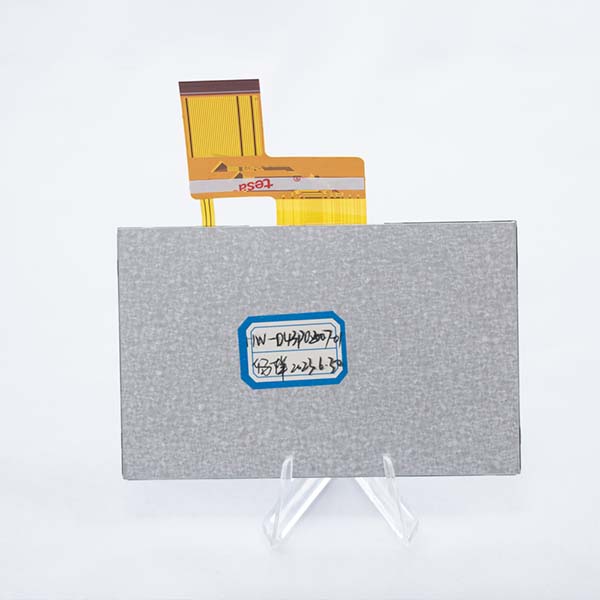

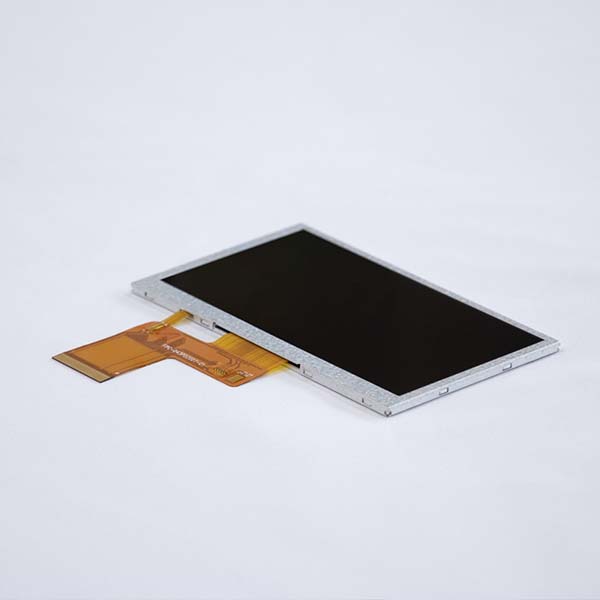

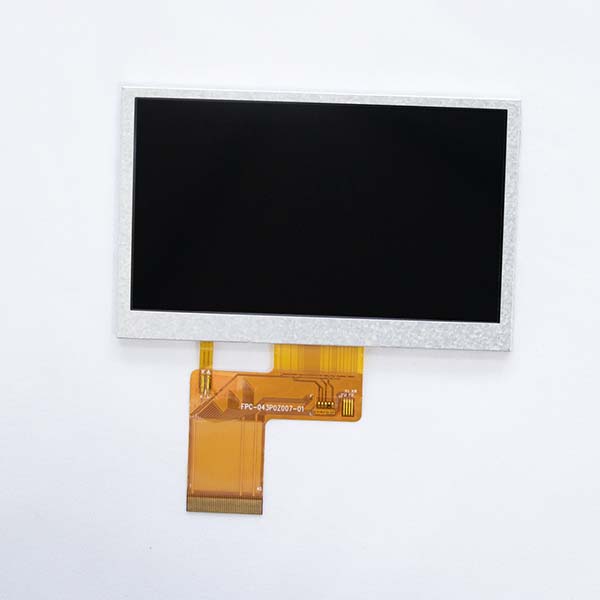

HW-043P0Z007-01 is 480x272 dots 4.3" color tft lcd module display with RGB interface, in 40 pins, and could be customized for other pins. The typical value brightness of the module is 320nits, optional 4-wire resistive touch panel with USB driver board and cable, optional capacitive touch panel with USB controller board and cable, optional remote control, superior display quality, super wide view angle. with ST7282A drive IC, all o'clock viewing direction, 16.7M color depth, white backlight and transmissive type. The display utilizes In-Plane Switching (IPS) technology, which provides a full viewing angle, ensuring that the screen content is easily visible from any direction without any color distortion or fading.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
