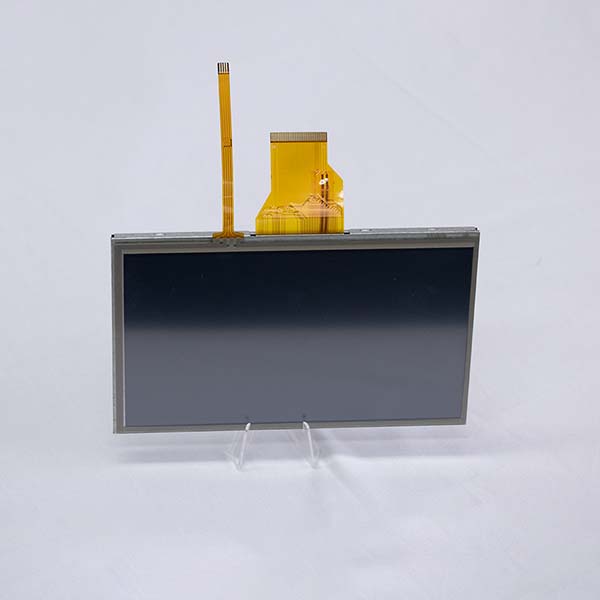

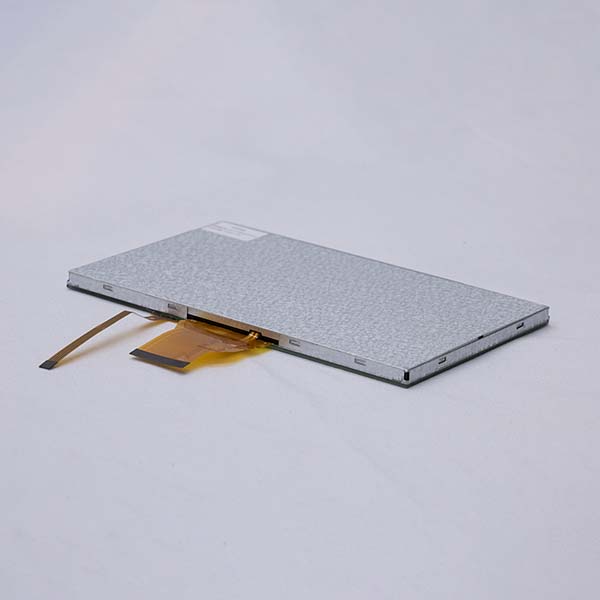

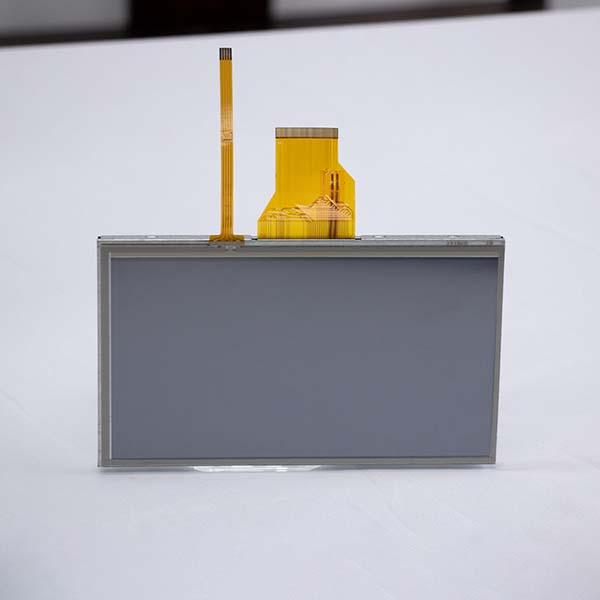

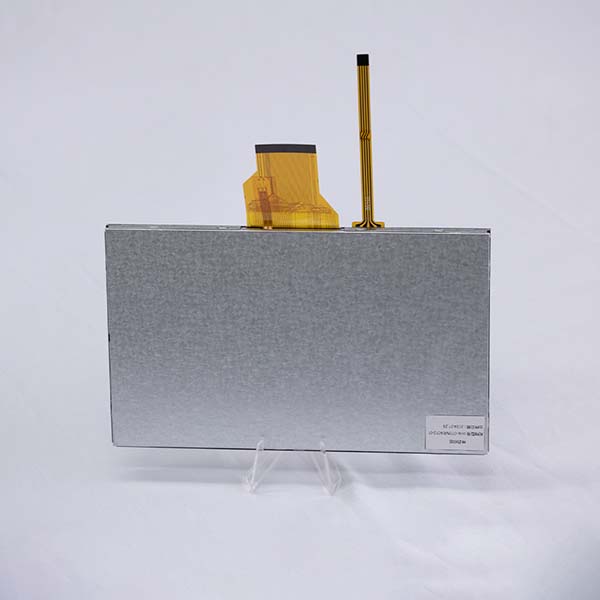

KINGWAY 7 Inch 800x480 Tn Tft Lcd Display with Touch Screen

Model: HW-070NRW012-01

Display Size: 7 inch

Outline Dimension: 165*100*5.7 mm

Active Area: 154.08*85.92 mm

Display Type: TN

Resolution: 800*RGB*480

Screen Color: 16.7M

Driver IC: HX8264+HX8664

Viewing Direction: 6 O'clock

Interface: RGB

LCM Brightness: 350 cd/m2 Min, 400 cd/m2 TYP

LCM Uniformity: 75% MIN

Work Temperature: -20~+70℃

Storage Temperature: -30~+80℃


View details
Online ordering
Description

The HW-070NRW012-01 is a 7-inch TN TFT LCD display with a resolution of 800(RGB) x 480, offering sharp visuals with 16.7M colors. The display has an active area of 154.08 x 85.92 mm and an outline dimension of 165 x 100 x 5.7 mm. Designed with a 6 o'clock viewing direction, it ensures optimal visibility from that angle. Powered by the HX8264 and HX8664 driver ICs, the display supports an RGB interface for seamless performance. With a brightness of 400 cd/m² typically and a minimum of 350 cd/m², along with 75% uniformity, it delivers clear and bright images.

This display is ideal for applications in industrial controls, automotive systems, and other environments requiring durability and clarity in a wide range of temperatures, from -20°C to +70°C.

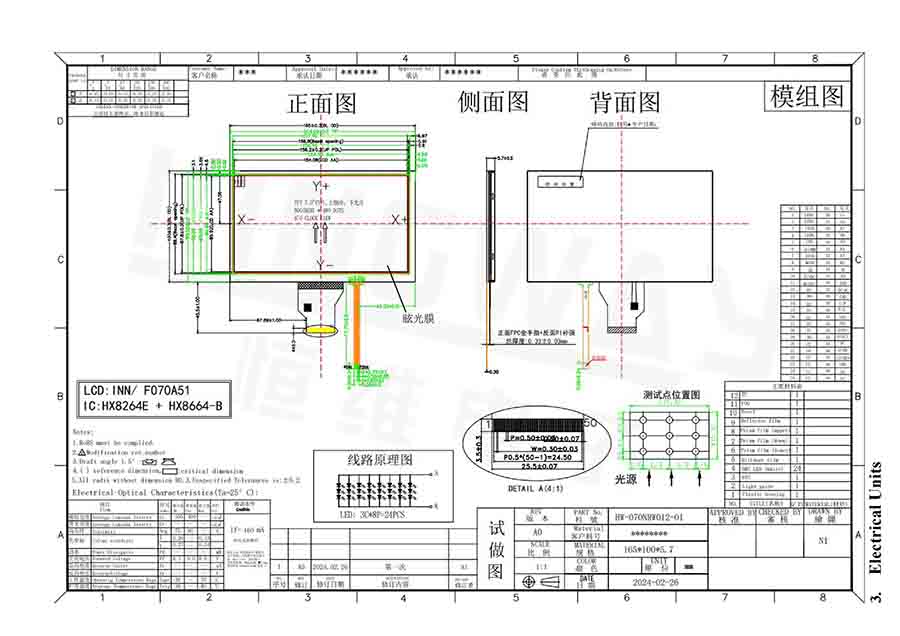

60. HW-070NRW012-01.jpg


It is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* Backlight with different brightness is customized according to your request.

* Capacitive & Resistive touch panel/ Demo board is available for your option.

* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
