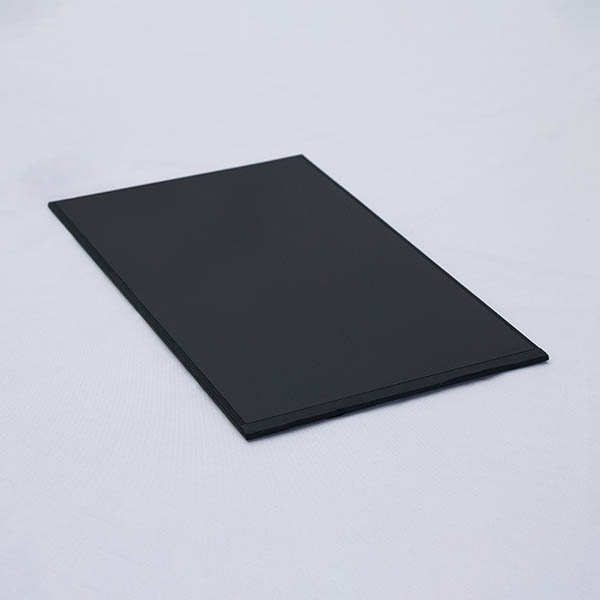

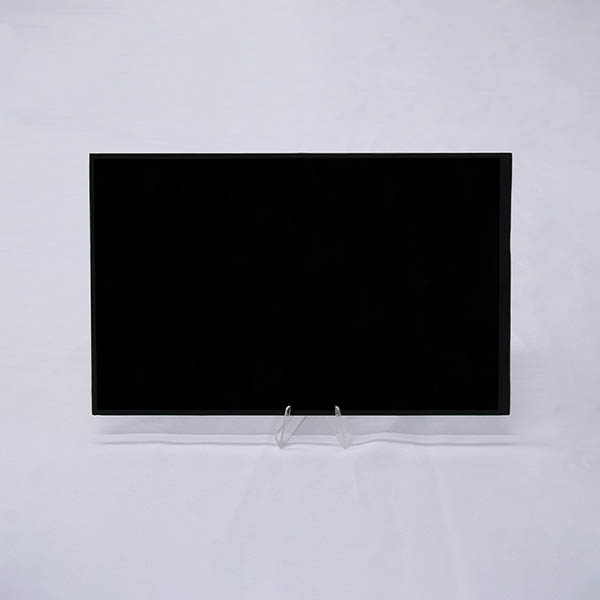

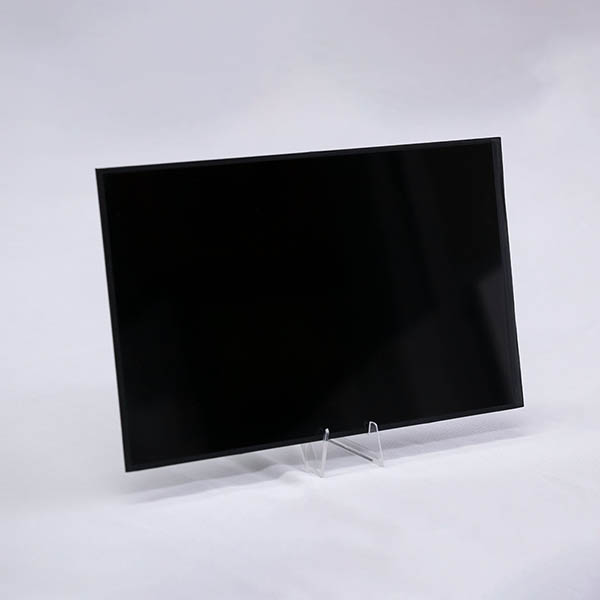

The HW-101PCW004-01 is a 10.1-inch IPS TFT LCD display with a resolution of 800(RGB) x 1280, providing vibrant visuals with 16.7M colors. It has an active area of 135.36 x 216.58 mm and an outline dimension of 143 x 228.6 x 2.55 mm. Featuring full viewing angles, the display ensures clear and undistorted visuals from any direction. Powered by the JD9365DA-H3 driver IC and supporting a MIPI interface, it offers reliable performance. The backlight system consists of 28 LEDs, operating at 140mA (20mA per LED), with a typical brightness of 300 cd/m² and 80% uniformity.
This display is ideal for tablets, industrial control systems, and other applications requiring high color accuracy and wide viewing angles in a range of environmental conditions.
* It is a Transmissive type color active matrix liquid crystal display (LCD).

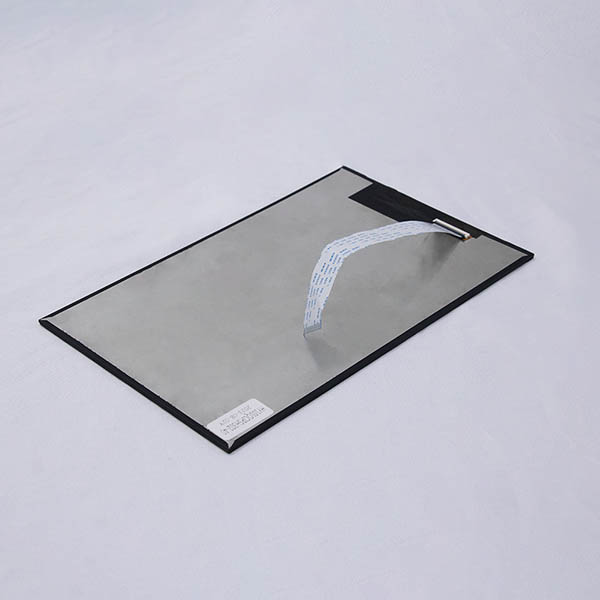

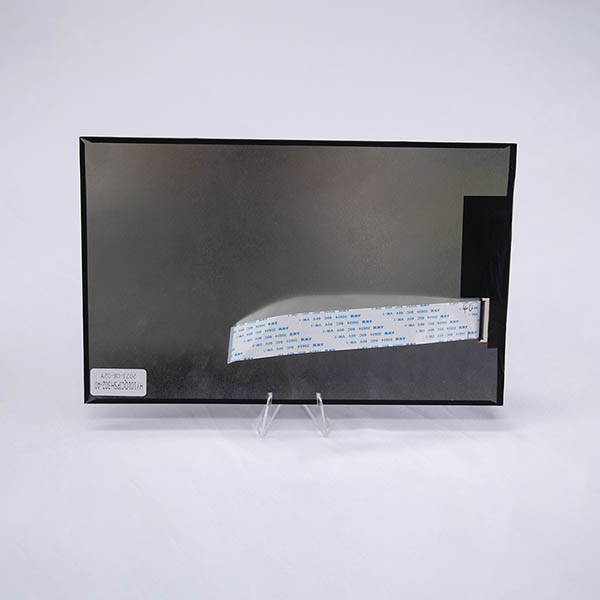

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
