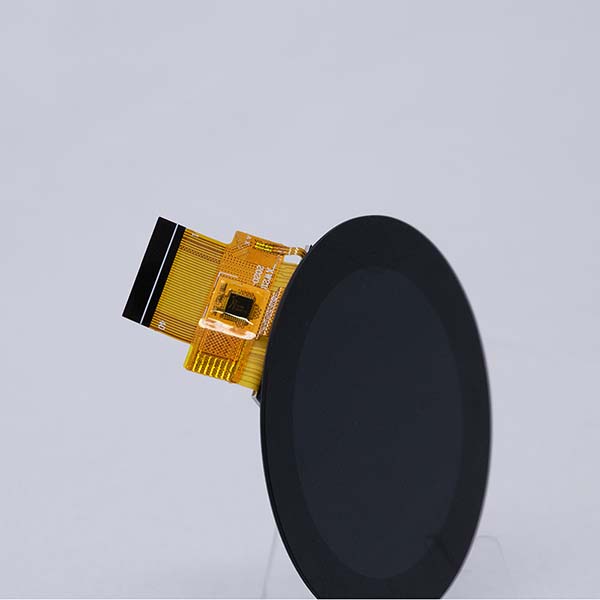

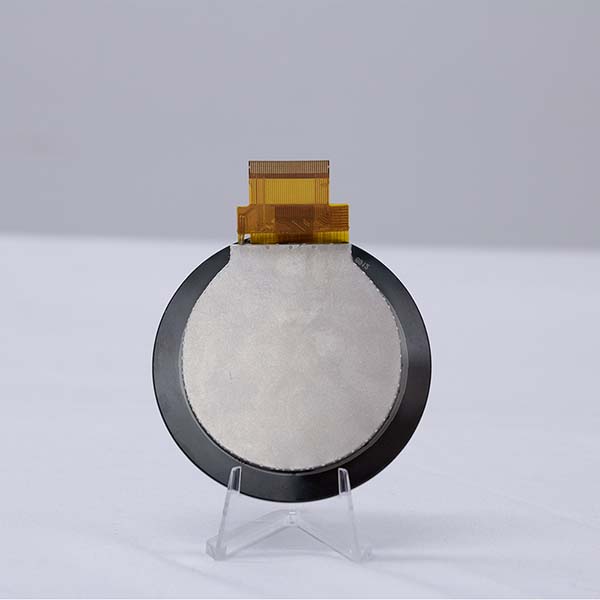

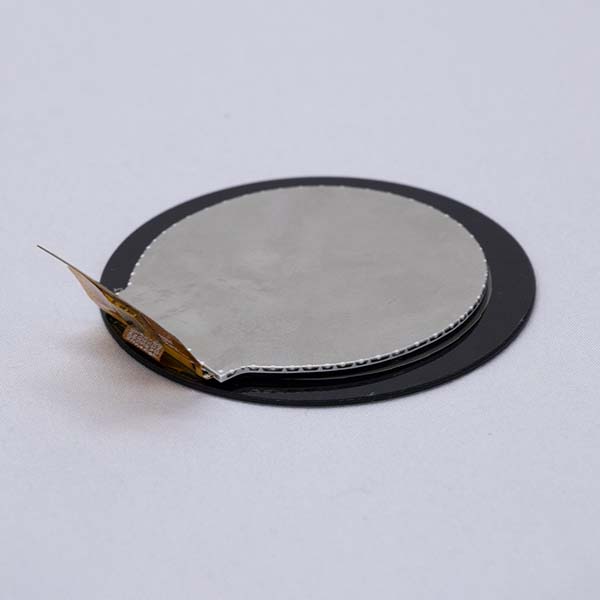

HW-021PCZ001-01 is a 2.1 inch 480x480 resolution circular tft lcd display with capacitive touch screen and 40 pins-out. The 2.1'' IPS TFT with full view, transmissive display, 262k color depth, and 2.8V~3.3V operating voltage. Backlight is white color with 4pcs, backlight current is 80mA per pcs of LED. Surface luminance is 350 cd/m2. It's 3SPI+18RGB interface with optional FPC with zif connector is easily to assemble or remove. It can be used in coffee machine or any circle display application.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
