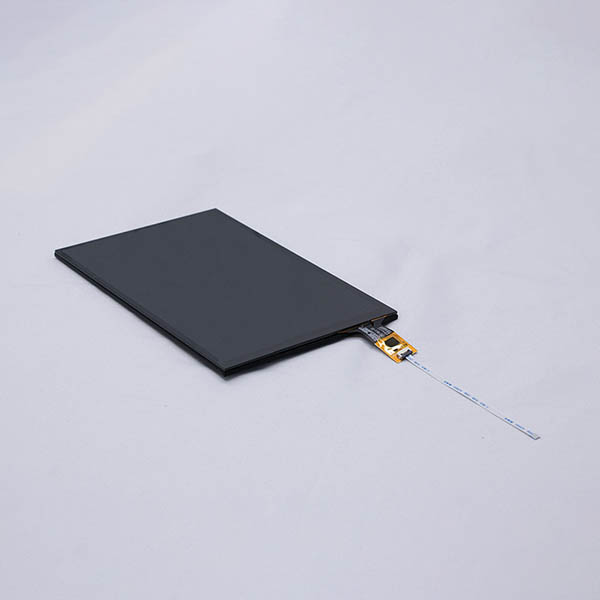

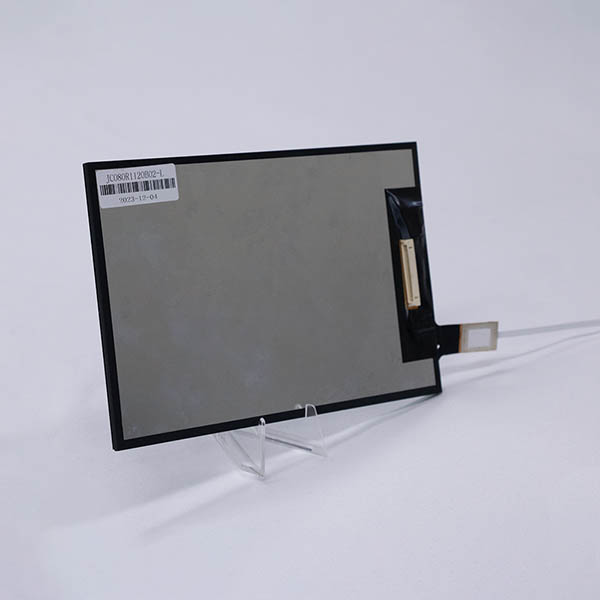

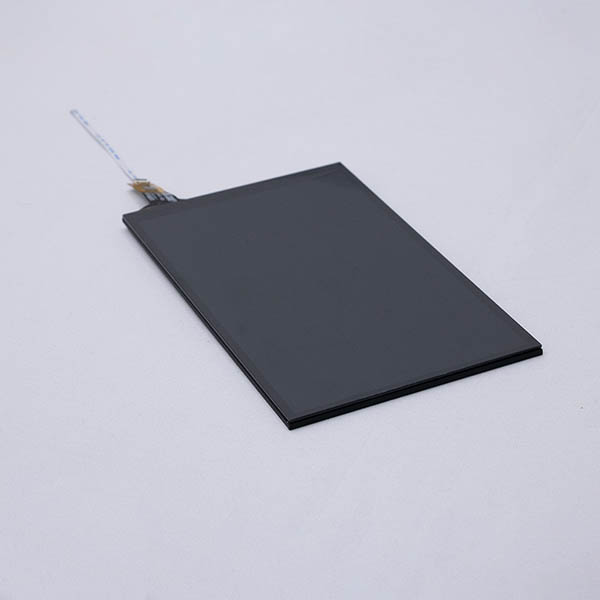

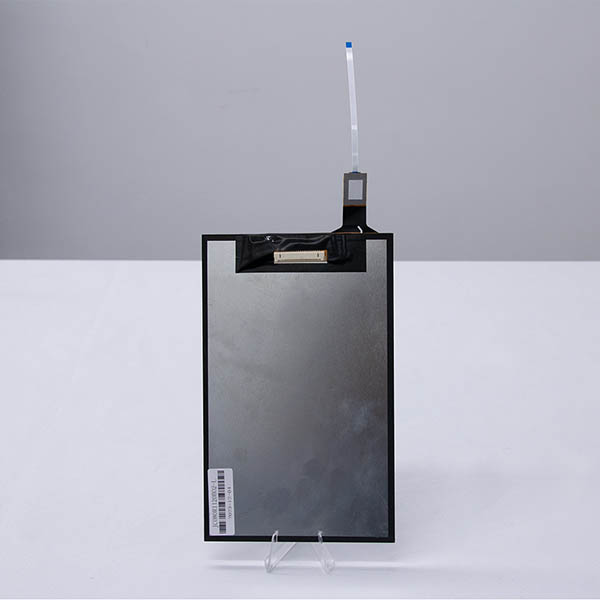

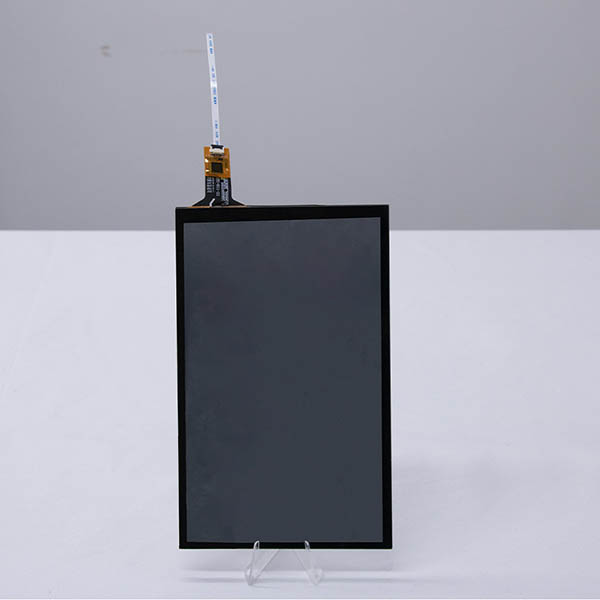

KINGWAY 8 Inch 800x1280 Ips Tft Lcd Screen Display

Model: HW-080PCZ001-01

Display Size: 8 inch

Outline Dimension: 114.6*184.1*2.6 mm

Active Area: 107.64*172.22 mm

Display Type: IPS

Resolution: 800*RGB*1280

Screen Color: 16.7M

Driver IC: 9365DA-H3

Viewing Direction: All O'clock

Interface: MIPI

LCM Brightness: 500 cd/m2 TYP

Work Temperature: -0~+50℃

Storage Temperature: -10~+60℃


View details
Online ordering
Description

The HW-080PCZ001-01 is an 8-inch IPS TFT LCD display with a resolution of 800(RGB) x 1280, providing vibrant visuals with 16.7M colors. The active area measures 107.64 x 172.22 mm, and the outline dimension is 114.6 x 184.1 x 2.6 mm. Featuring full viewing angles, the display ensures consistent image quality from any perspective. Powered by the 9365DA-H3 driver IC and utilizing a MIPI interface, it delivers smooth data transmission and performance. With a typical brightness of 500 cd/m², the display offers high visibility.

This display is well-suited for tablets, multimedia devices, and industrial controls where excellent color reproduction and wide viewing angles are essential.

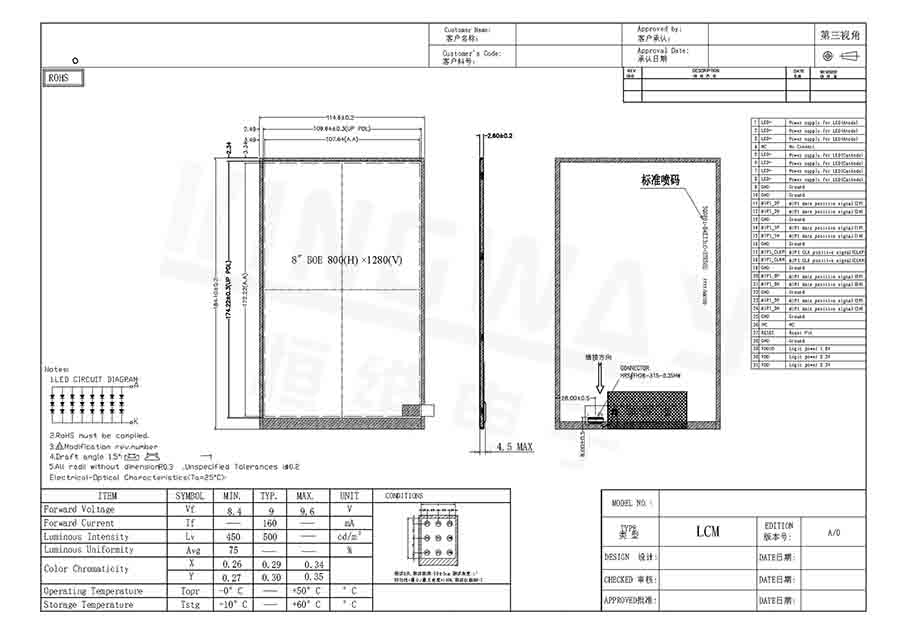

62. HW-080PCZ001-01.jpg


It is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* Backlight with different brightness is customized according to your request.

* Capacitive & Resistive touch panel/ Demo board is available for your option.

* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
