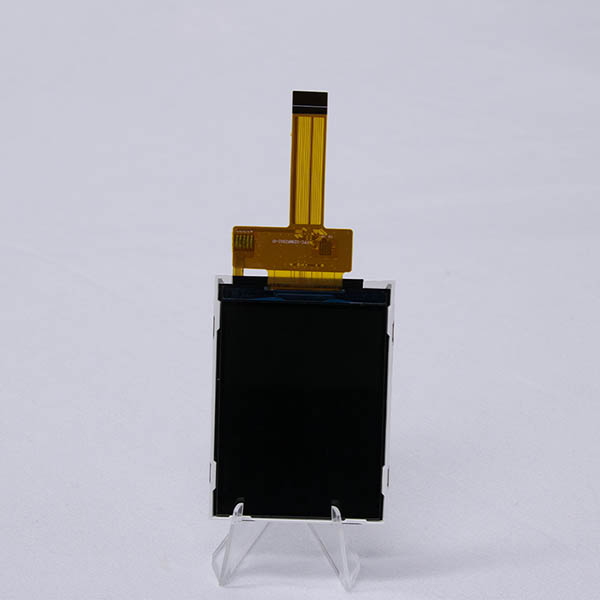

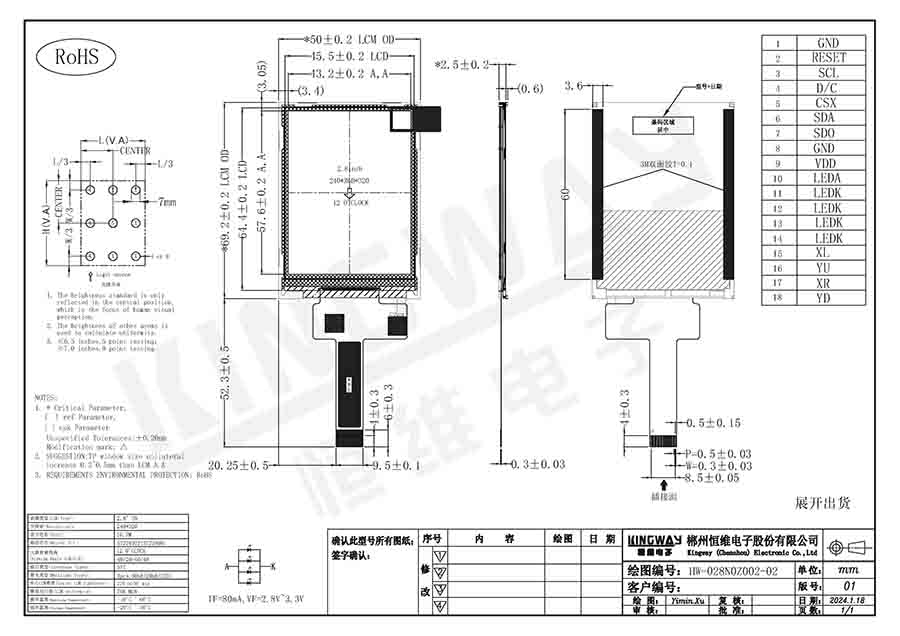

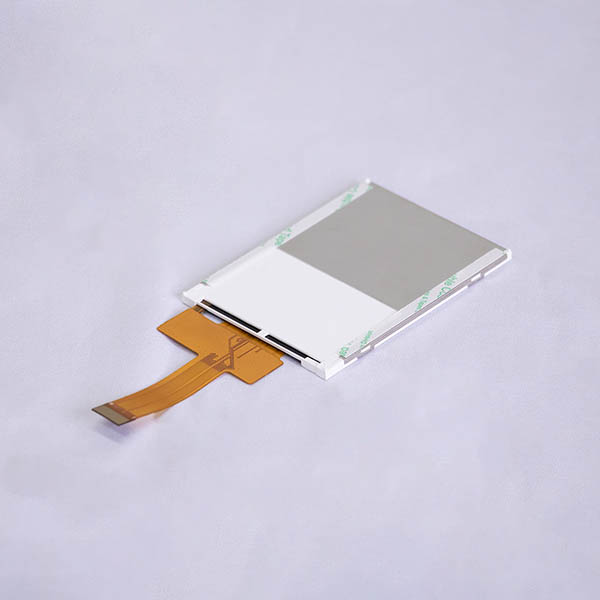

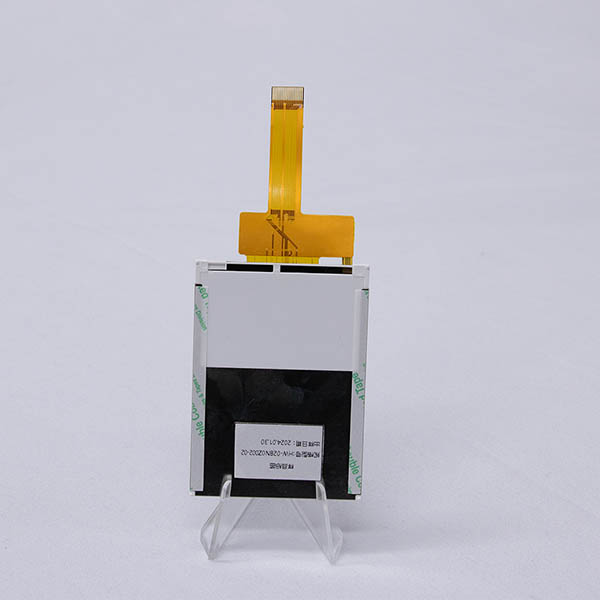

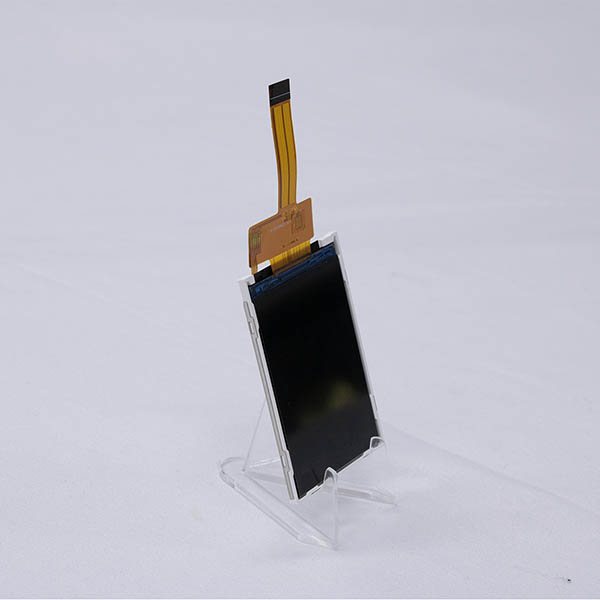

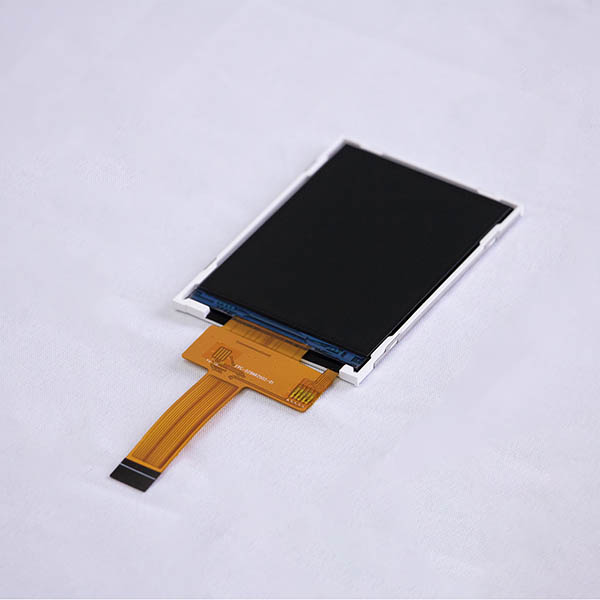

HW-028N0Z002-02 is a 2.8" TN TFT LCD module display with optional capacitive touch panel and 4-wire resistive touch panel. It is equipped with a TN display type and a resolution of 240*320. The screen supports a vibrant 16.7 million colors. Backlight current is 80mA and backlight voltage is 2.8~3.3V, with 4 backlight LEDs. This 2.8 inch TFT LCD screen is equipped with 4Line-SPI Interface, ST7789T3 driver IC, 12 o'clock viewing direction, white backlight and transmissive type. The minimum brightness of the module is 220 nits, and the minimum uniformity of the module is 75%. The work temperature is -10~+60ºC, and the storage temperature is -20~+70ºC.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
