HW-096P0Z002-01 is a 0.96 inch tft lcd module in 80x160 resolution, it is 4 wire SPI interface in 8 pins, and could be customized for other pinout. Backlight brightness is 420~450 nits. It is suitable for both indoor and outdoor application, such as measuring device and control panel, hybrid recorders, timer, counter, power limiter. The backlight has 1 backlight LED, backlight current is 20mA and backlight voltage is 3.2V, which could be customized. This 0.96 inch TFT LCD module is designed with ST7735S, viewing direction is all o'clock, color depth is 262K, white LED and transmissive type.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.

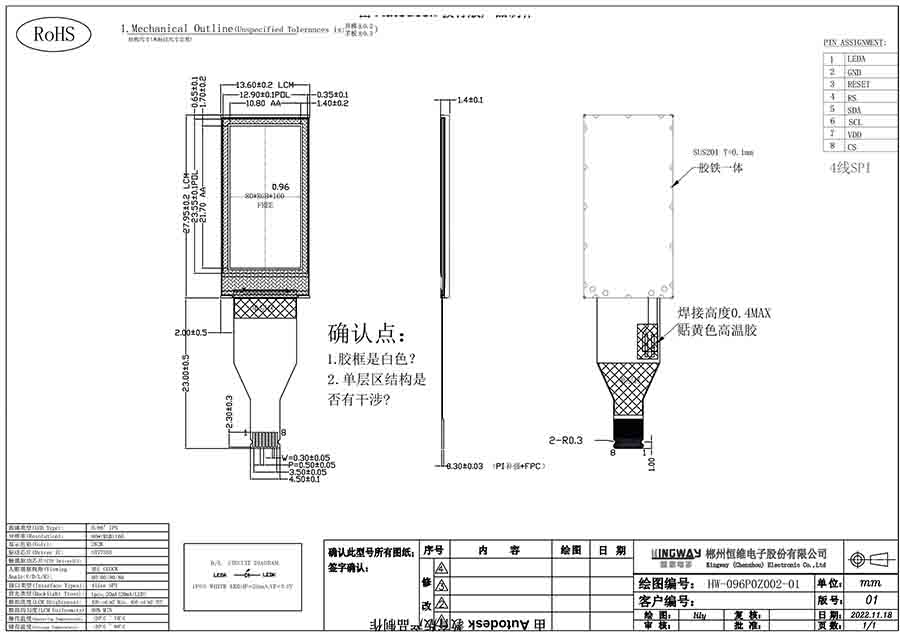

Drawing:
Applications:
A 0.96-inch TFT LCD display finds versatile applications in various electronic devices due to its compact size and vibrant visual output. Its small form factor makes it ideal for wearable devices such as smartwatches and fitness trackers, providing users with a crisp and clear interface in a limited space.
Additionally, these displays are commonly used in electronic gadgets like digital cameras and portable media players, where space efficiency is crucial. The high-quality color reproduction and sharp resolution of the 0.96-inch TFT screen enhance the user experience by delivering detailed images and graphics.
Moreover, this type of display is employed in small-scale embedded systems and IoT devices for real-time data monitoring. The compact yet feature-rich nature of the 0.96-inch TFT LCD makes it suitable for applications where space is at a premium, and visual feedback is essential, ensuring an effective and user-friendly interface in a wide range of electronic products.
