HW-015PGZ003-01 is an 1.47 inch square ips tft lcd module in 172x320 resolution, it is SPI interface in 39 pins, Pinmap is customizable. This 1.47 inch TFT LCD module is designed with ST7789T3, viewing direction is all o'clock, color depth is 262K, white backlight and transmissive type. Backlight current is 60mA and backlight voltage is 3V, with 3 backlight LEDs. The IPS (In-Plane Switching) technology used in this display provides wide viewing angles and excellent color reproduction, making it easy to view from various angles without distortion. Brightness is 600 nits. It is suitable for smart wear device, translation pen etc.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.

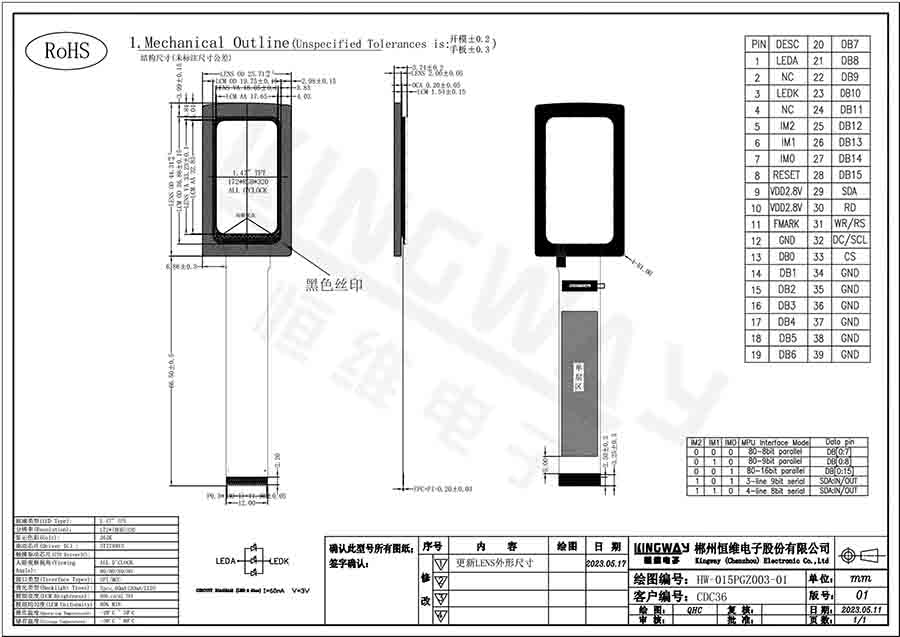

Drawing:
Applications:
The 1.47-inch TFT LCD display caters to diverse applications, offering a balance between compact design and visual clarity. Its moderate size makes it well-suited for integration into smartwatches, providing users with a visually immersive experience within the limited space available on the device.
Furthermore, this TFT screen size is often employed in various portable electronic devices such as handheld gaming consoles and compact digital cameras. The display's ability to render detailed images and graphics contributes to an enhanced user interface, making it an ideal choice for multimedia-centric applications.
In the realm of healthcare, the 1.47-inch TFT display is utilized in small medical devices and monitoring equipment, where a clear and concise visual representation of data is critical.
