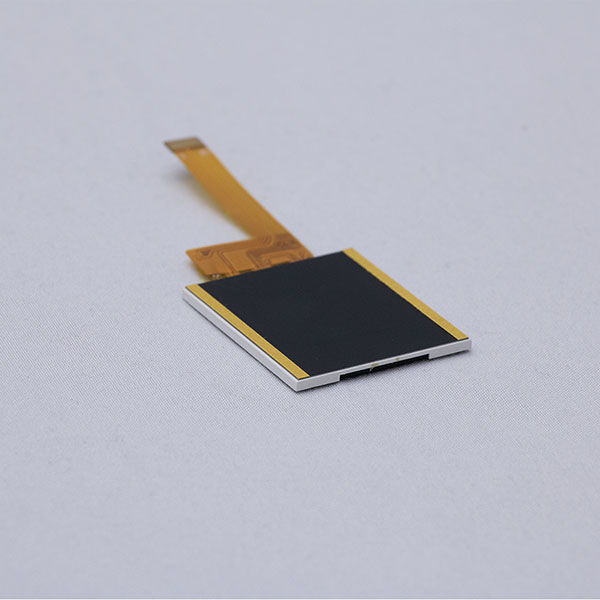

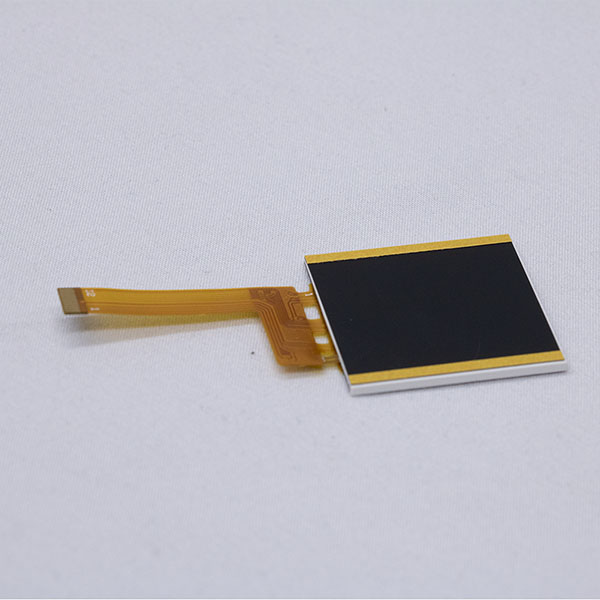

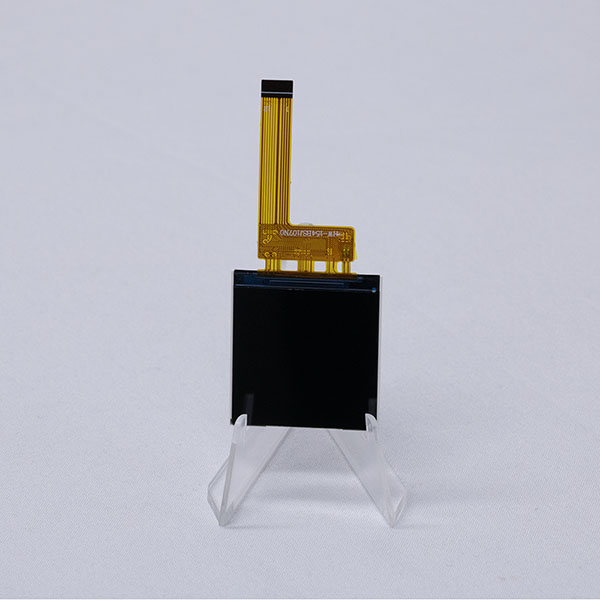

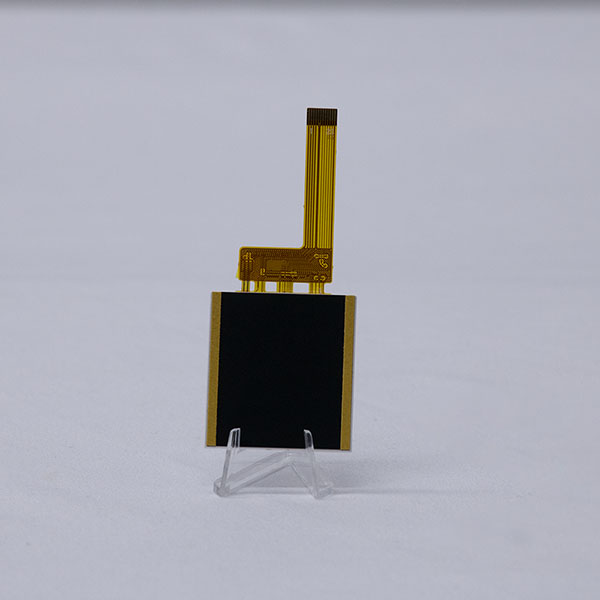

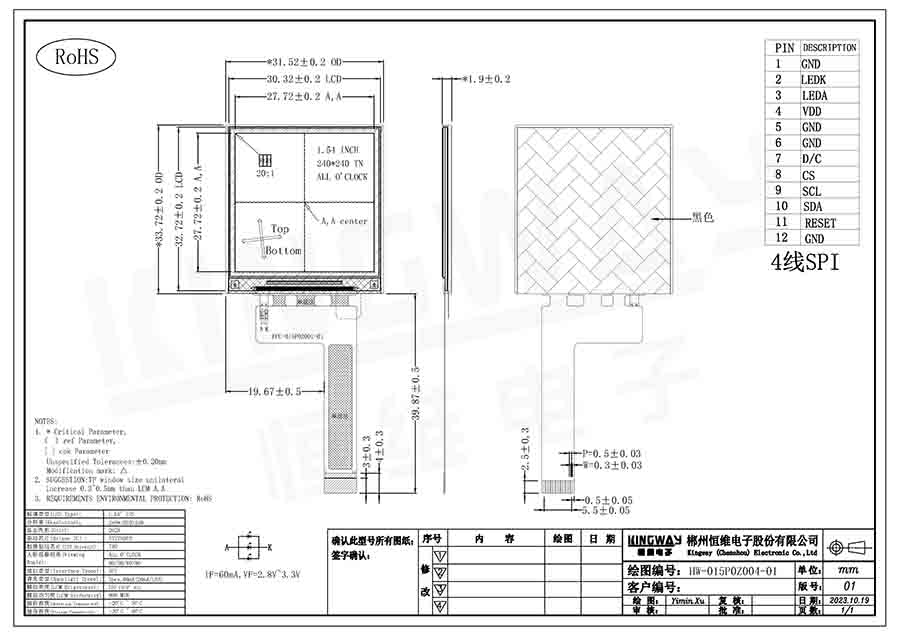

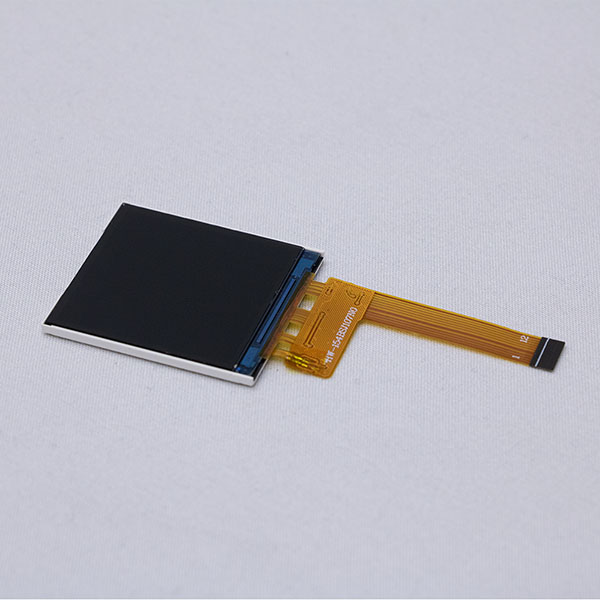

HW-015P0Z004-01 is 1.54" IPS TFT LCD Display with a resolution of 240x240 pixels. It utilizes the ST7789P3 display driver IC and 4-Wire Serial SPI interface for communication. It is suitable for indoor application, such as smart watch, thermostat control display, hybrid recorders, temperature measurement device etc. Backlight current is 60mA and backlight voltage is 2.8~3.2V, with 3 backlight LEDs. This 1.54-inch TFT LCD module has all o’clock viewing angle, 262K color depth, white backlight and transmissive type.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
