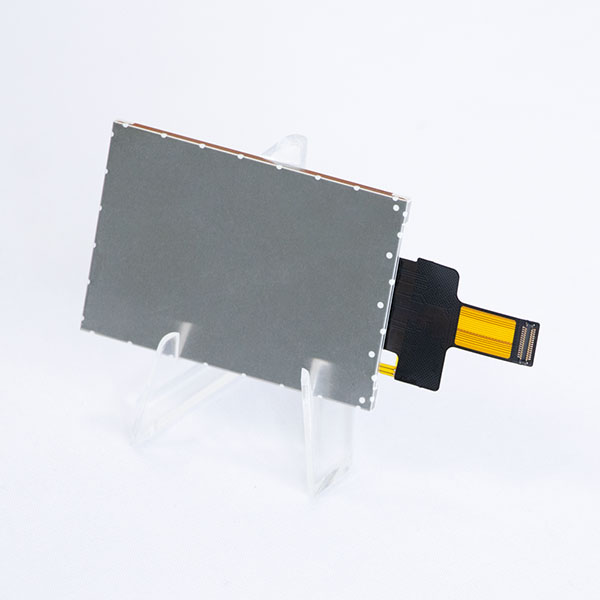

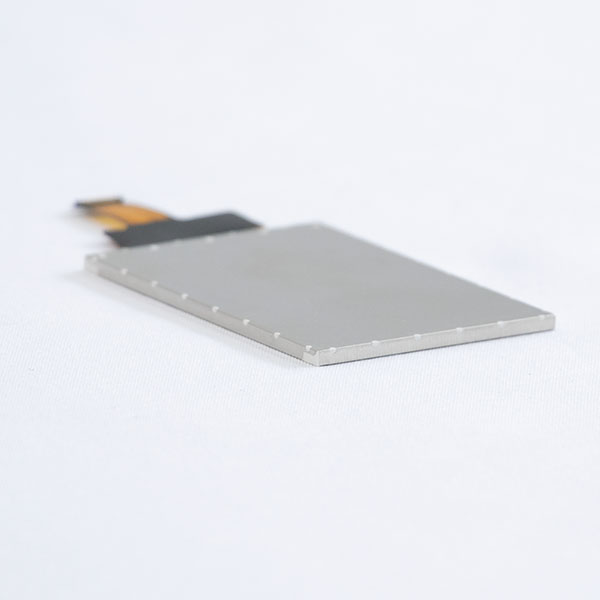

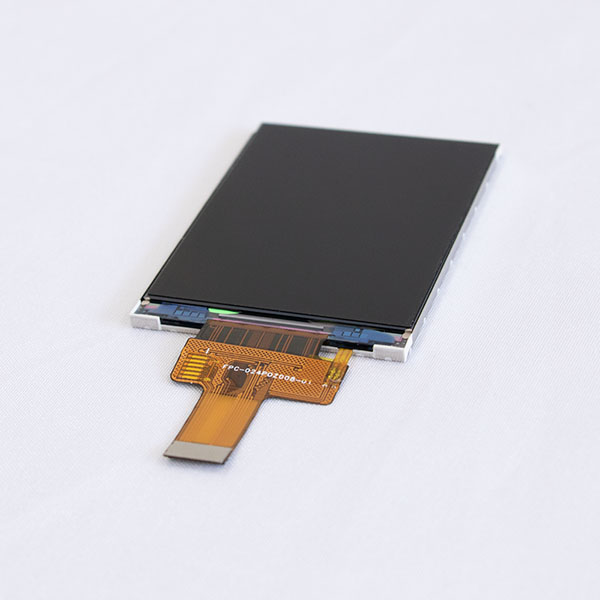

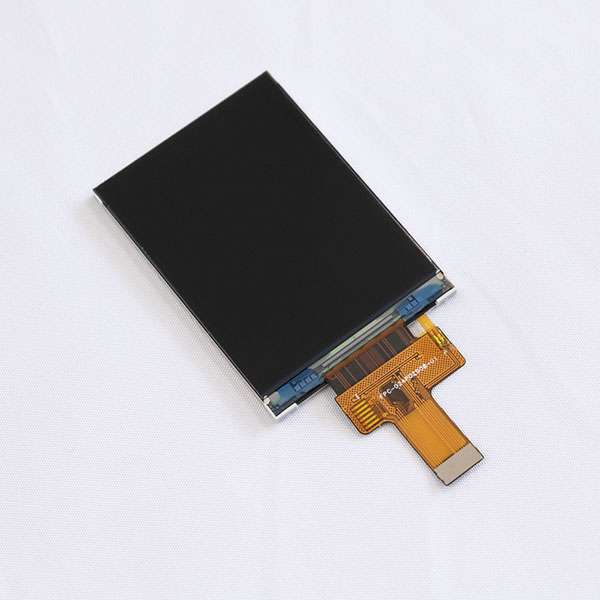

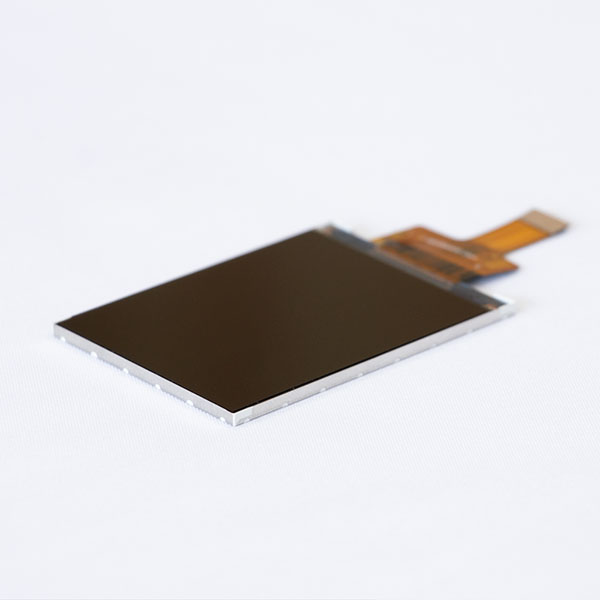

HW-024P0Z008-01 is a 2.4 inch square tft lcd module in 240x320 resolution with MCU 8 bits interface, in 30 pins, and could be customized for other pinmap. LCM Brightness is 400 nits. Backlight current is 80mA and backlight voltage is 2.8~3.2V, with 4 backlight LEDs. This 2.4 inch TFT LCD module is equipped with ST7789 drive IC, all o'clock viewing direction, 262K color depth, white backlight and transmissive type. The display utilizes In-Plane Switching (IPS) technology, which provides a full viewing angle, ensuring that the screen content is easily visible from any direction without any color distortion or fading.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.

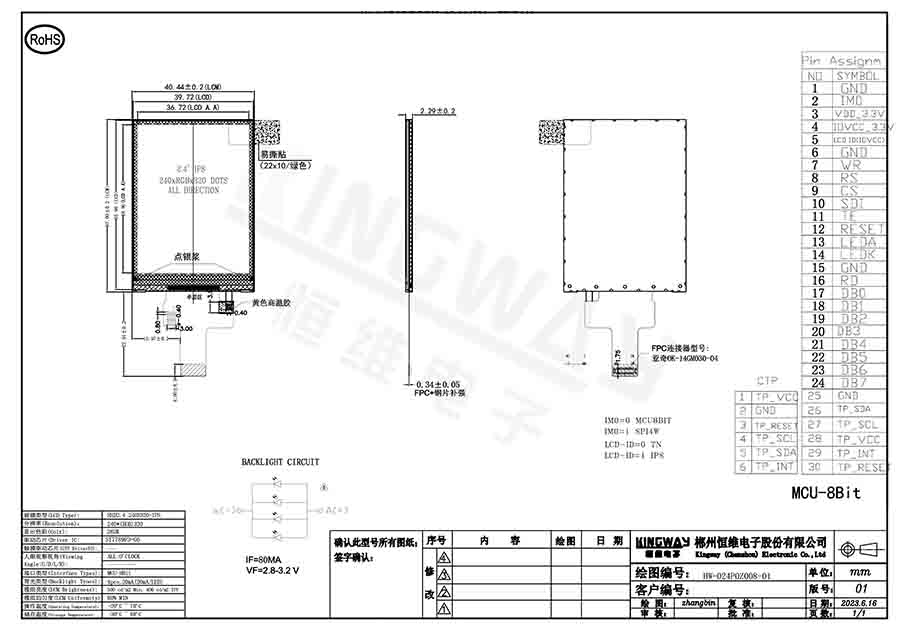

Drawing:
Applications:
Small 2.4-inch TFT LCD screens find versatile applications in various compact electronic devices. With their compact size and vibrant display capabilities, these screens are commonly employed in portable gadgets, such as handheld gaming devices and digital cameras.
In addition to consumer electronics, these displays are also utilized in industrial settings for data monitoring and control panels. Their compact form factor allows integration into machinery with limited space, providing operators with crucial information in a concise and easily readable format.
Moreover, these small TFT screens are frequently used in educational electronics kits and DIY projects. Students and hobbyists often incorporate them into Arduino or Raspberry Pi-based projects for displaying sensor data, simple graphical interfaces, or real-time information.
In summary, the 2.4-inch TFT LCD display serves as a versatile solution across various applications, offering a compact yet visually effective platform for information display in consumer electronics, industrial machinery, and educational projects.
