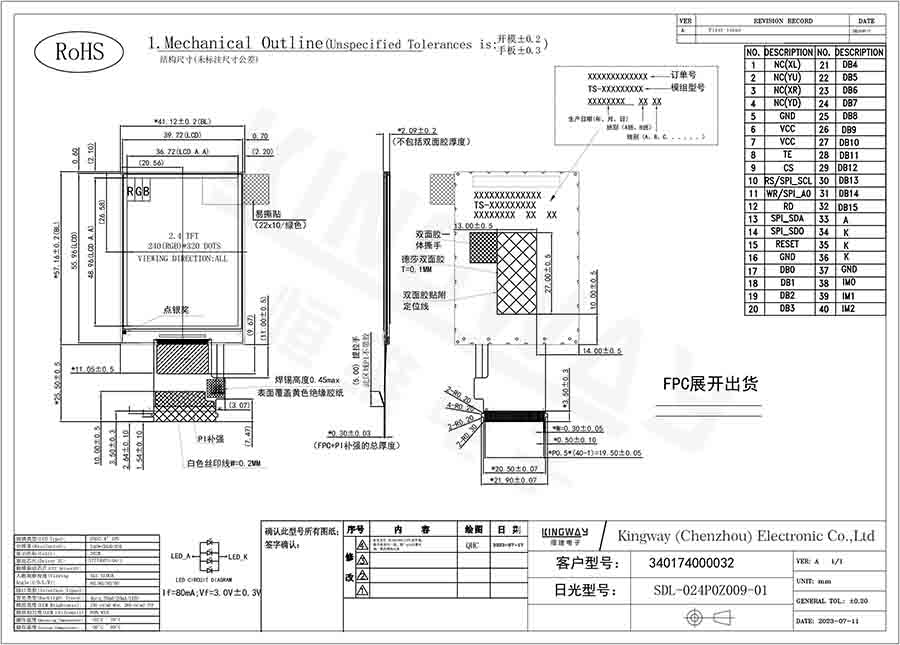

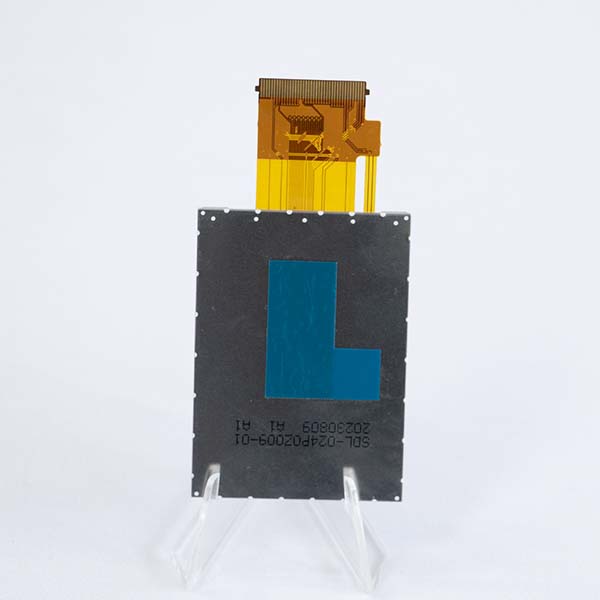

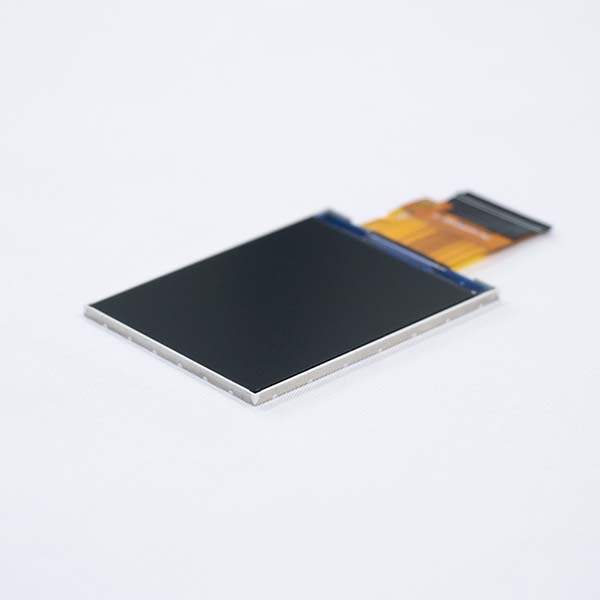

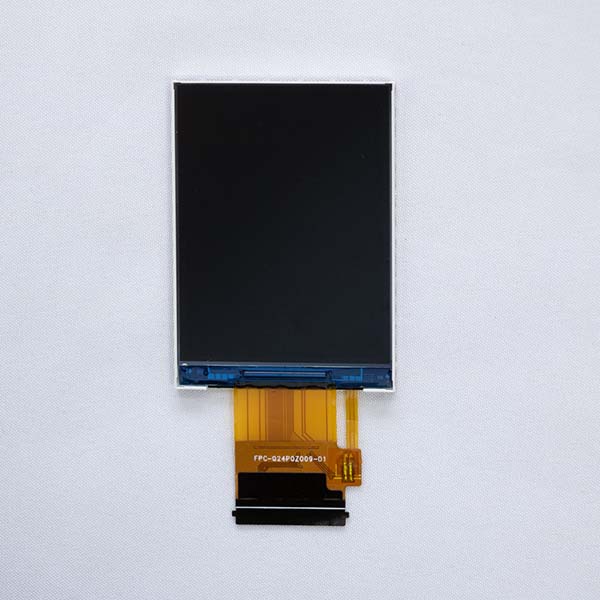

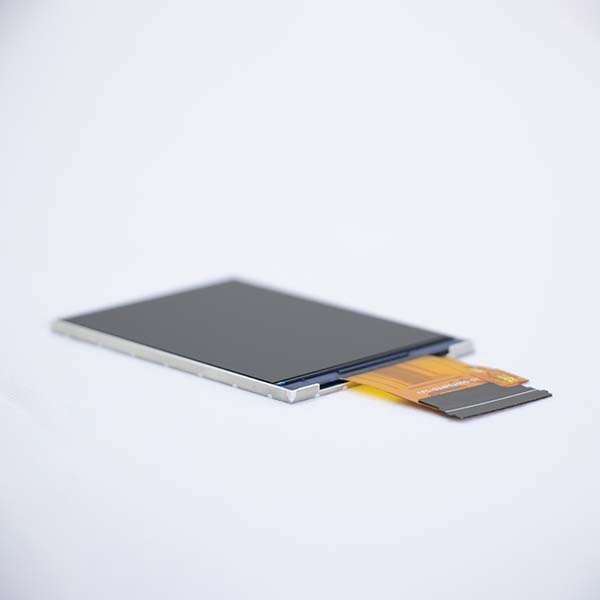

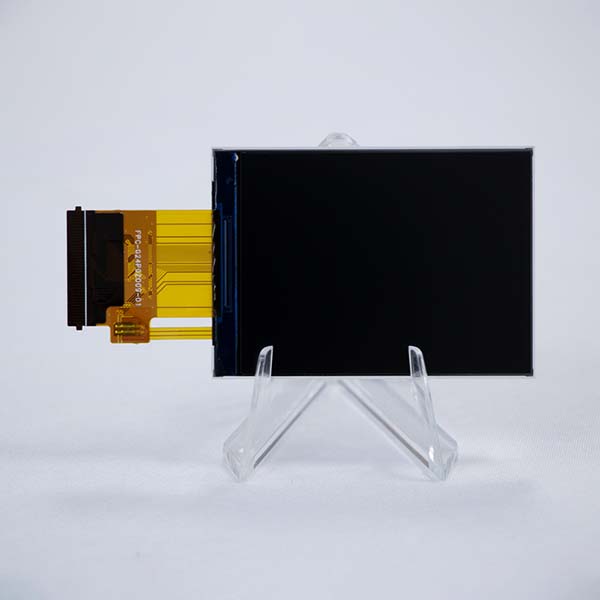

SDL-024P0Z009-01 is a 2.4 inch small tft lcd module in 240x320 resolution with SPI/MCU interface, in 40 pins, and could be customized for other pinmap. The minimum brightness of the module is 230 nits, and the minimum uniformity of the module is 80%. Backlight current is 80mA and backlight voltage is 3V, with 4 backlight LEDs. This 2.4 inch TFT LCD module is equipped with ST7789T3 drive IC, all o'clock viewing direction, 262K color depth, white backlight and transmissive type. The display utilizes In-Plane Switching (IPS) technology, which provides a full viewing angle, ensuring that the screen content is easily visible from any direction without any color distortion or fading.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
