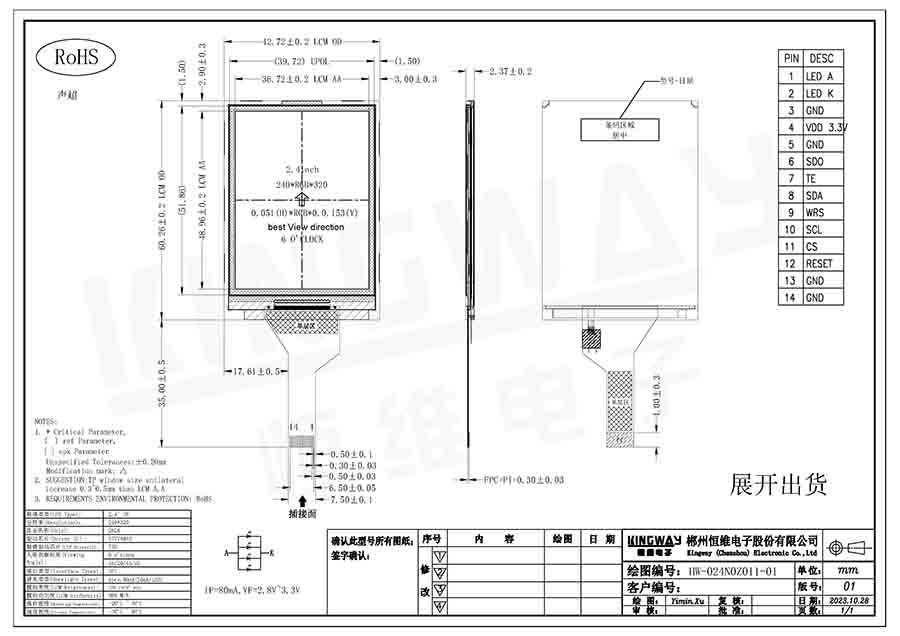

HW-024N0Z011-01 is a 2.4 inch small tft lcd module in 240x320 resolution with SPI interface, in 14 pins, and could be customized for other pinmap. The minimum brightness of the module is 250 nits, and the minimum uniformity of the module is 80%. Backlight current is 80mA and backlight voltage is 3V, with 4 backlight LEDs. This 2.4 inch TFT LCD module is equipped with ST7789P3 drive IC, 6 o'clock viewing direction, 262K color depth, white backlight and transmissive type.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
