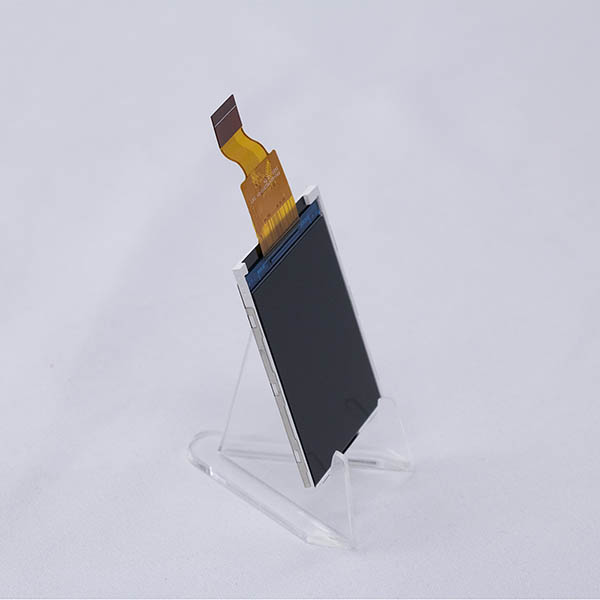

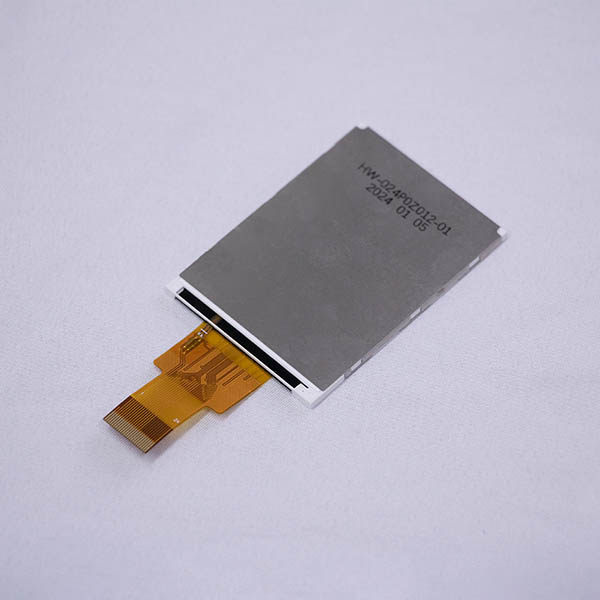

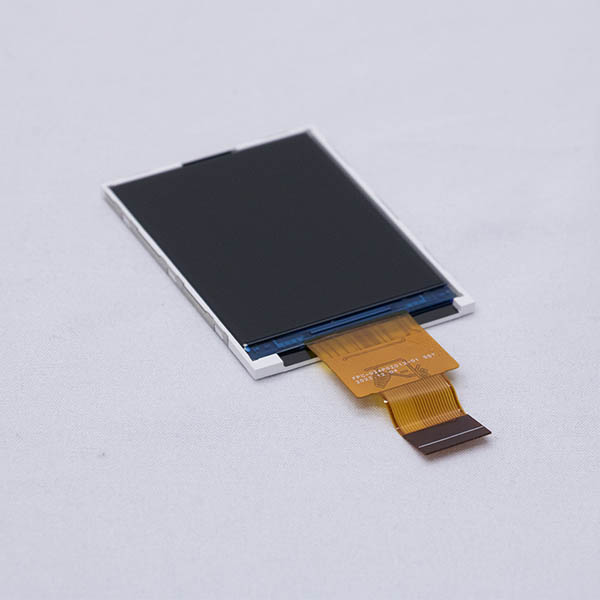

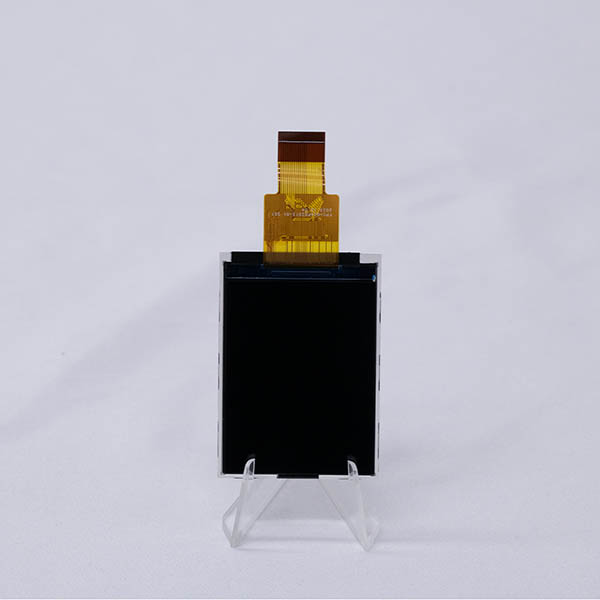

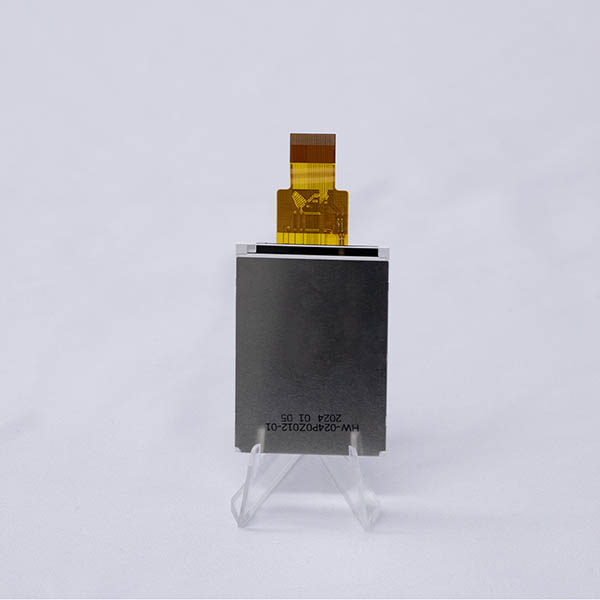

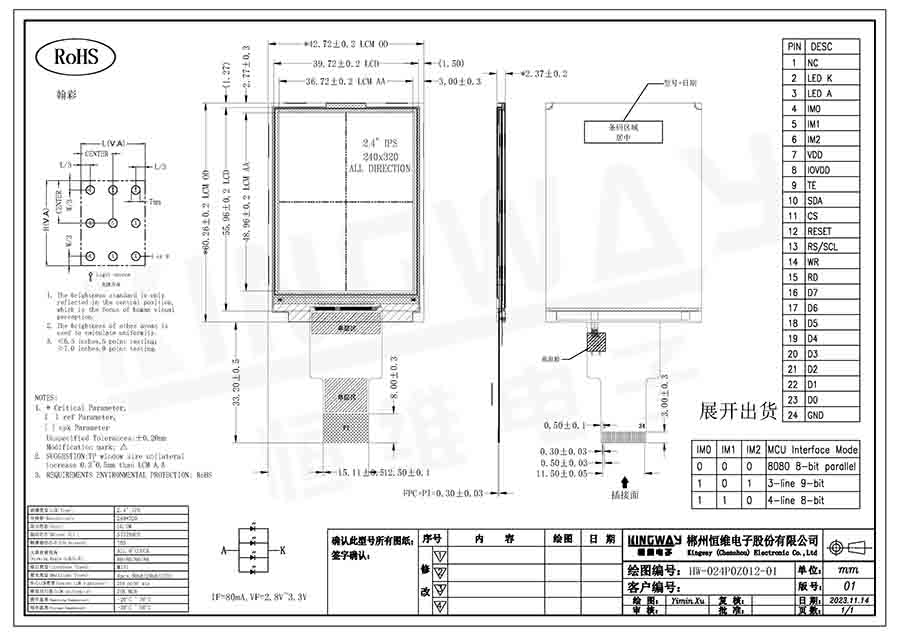

The HW-024P0Z012-01 is a 2.4-inch IPS TFT LCD display with a resolution of 240x320, offering vibrant visuals with 16.7M colors. It has an active area of 36.72x48.96mm and an outline dimension of 42.72x60.26x2.37 mm, making it suitable for compact devices. The display supports a MIPI interface and is driven by the ST7789P3 IC, ensuring reliable performance and compatibility. With an all-clock viewing direction, it provides clear visibility from any angle, while the 4-piece LED backlight system with 80mA (20mA/LED) offers a brightness of 250 cd/m², ensuring readability in various lighting conditions.
This display is ideal for a wide range of applications, including smartwatches, portable devices, handheld electronics, medical devices, and industrial control panels, where compact size, wide viewing angles, and durability are essential.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
