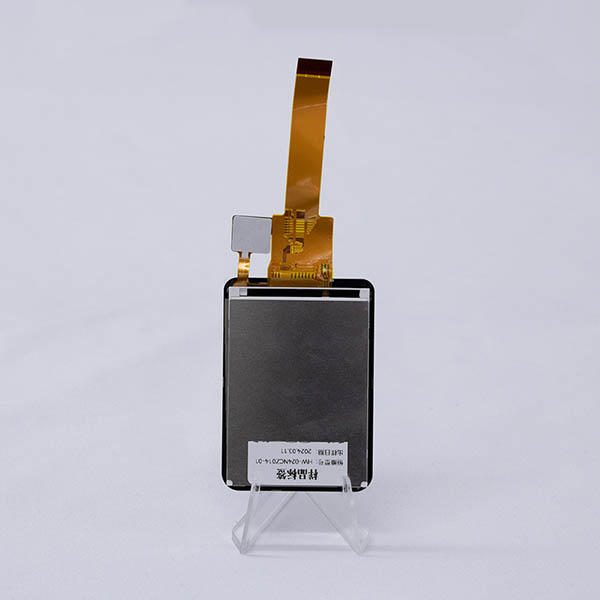

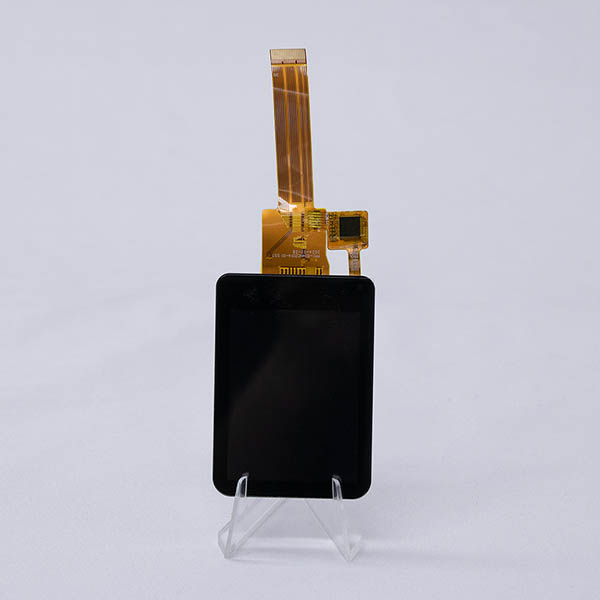

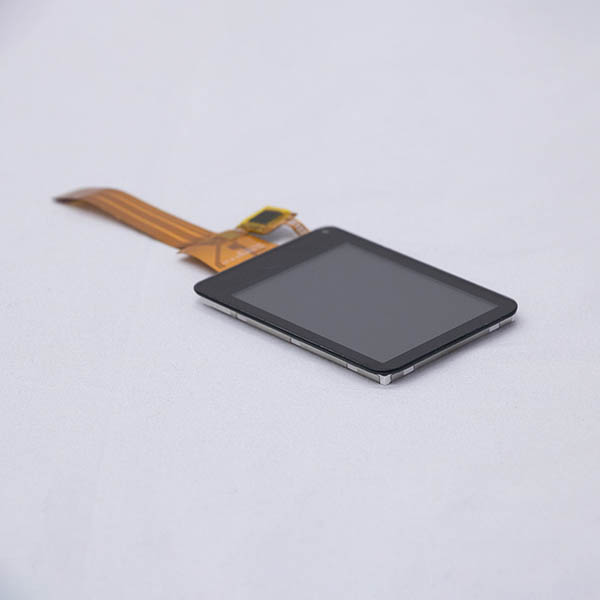

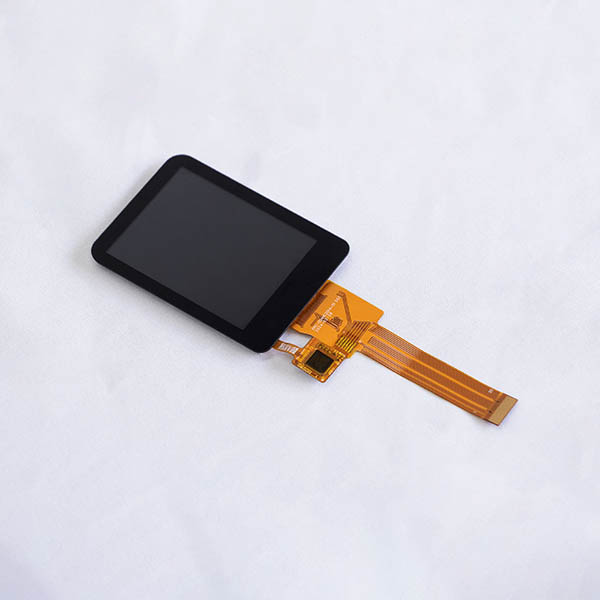

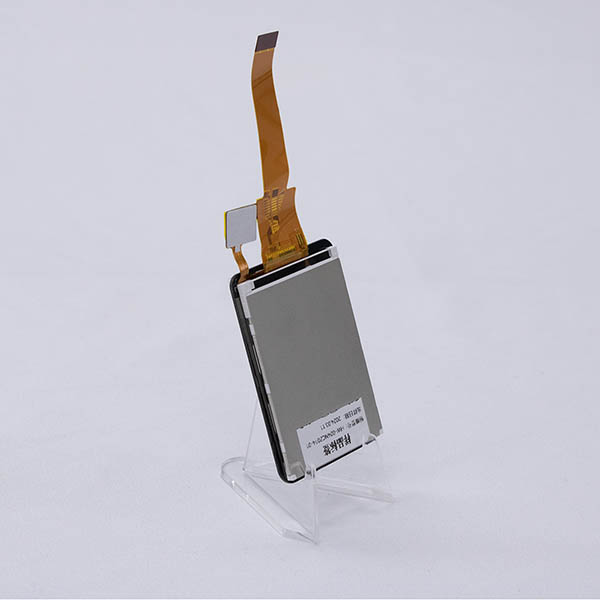

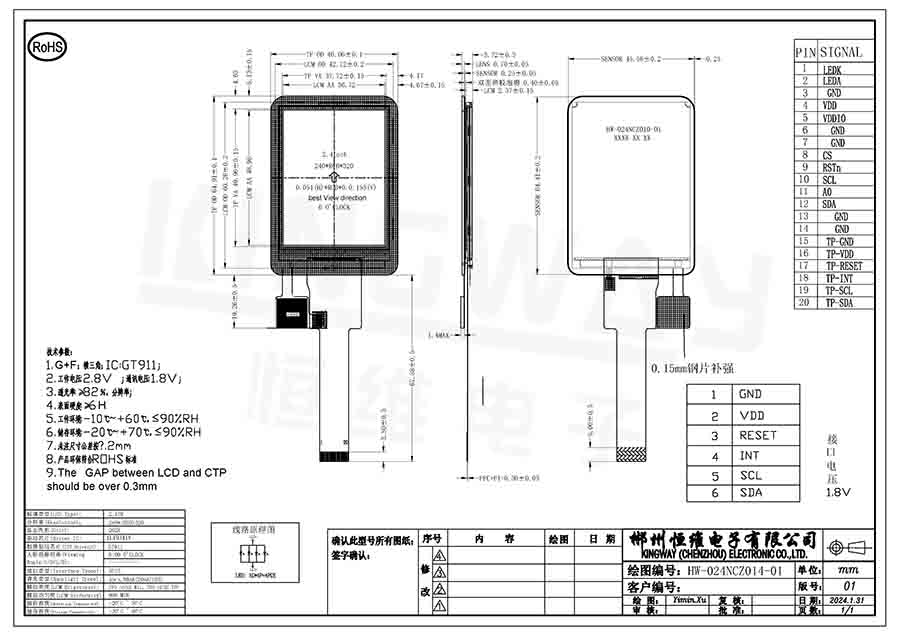

The HW-024NCZ014-01 is a 2.4-inch TN TFT LCD display with a resolution of 240(RGB) x 320. The display has an active area of 36.72x48.96 mm and an outline dimension of 42.72x60.26x2.6 mm, making it an excellent choice for compact devices. Driven by the ILI9341V IC, the module supports an SPI interface for smooth and efficient performance. With a 6 o'clock viewing direction, it ensures optimal visibility in standard applications. The backlight system includes 4 LEDs, operating at 80mA (20mA/LED), offering a typical brightness of 320 cd/m² and a minimum brightness of 250 cd/m², with a uniformity of 80% or higher.
This display is ideal for a wide range of applications, including portable devices, handheld electronics, medical devices, industrial control panels and so on.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
