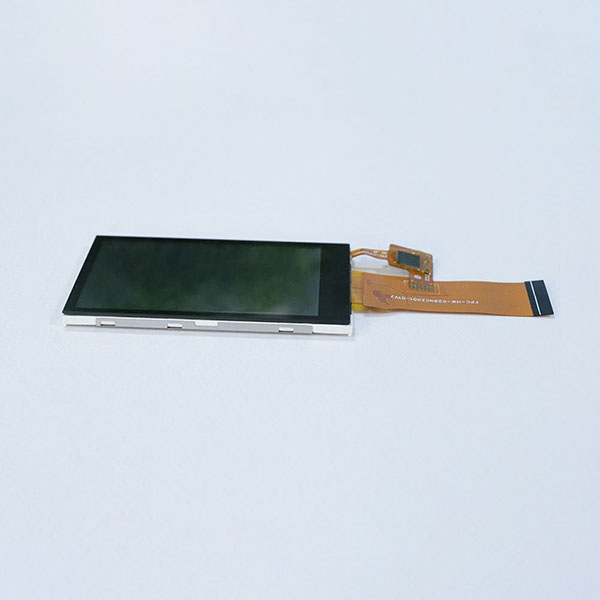

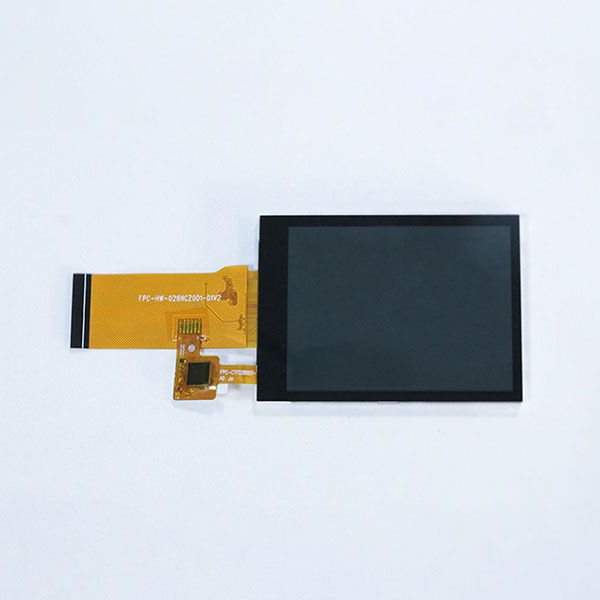

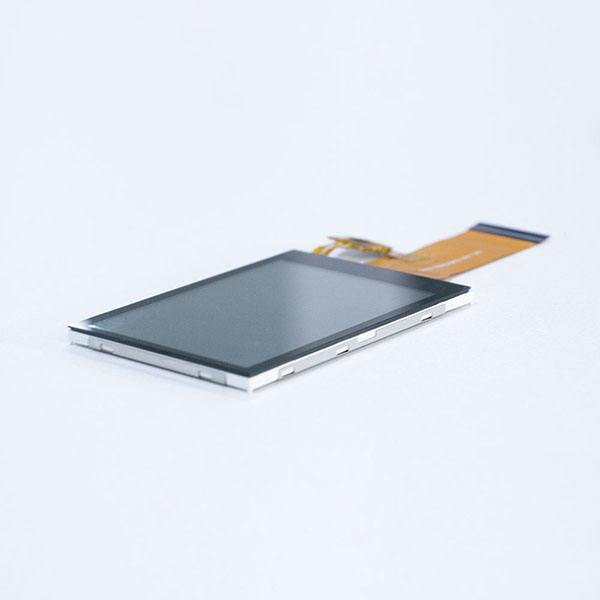

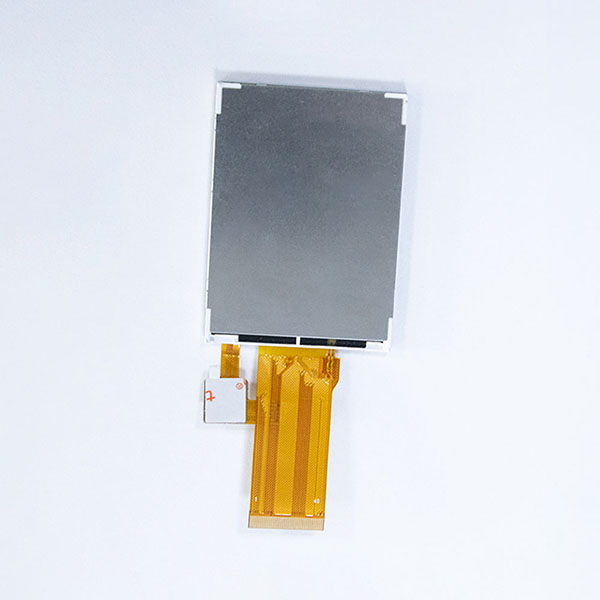

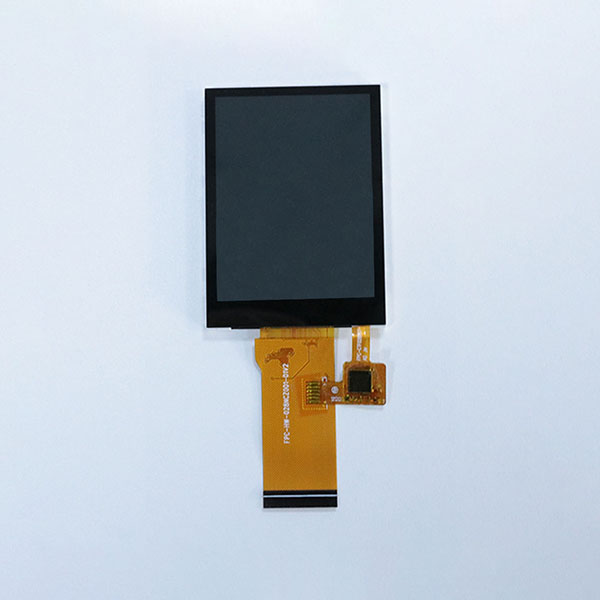

HW-028NCZ001-03 is a 2.8" color TFT LCD module display with optional capacitive touch panel and resistive touch panel. It equipped with a TN display type and a resolution of 240*320. Backlight current is 80mA and backlight voltage is 2.8~3.3V, with 4 backlight LEDs. This 2.8 inch TFT LCD screen is equipped with ST7789 driver IC, MCU-8Bit Interface, 262K color depth, 12 o'clock viewing direction, white backlight and transmissive type. The minimum brightness of the module is 250 nits, and the minimum uniformity of the module is 80%.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
