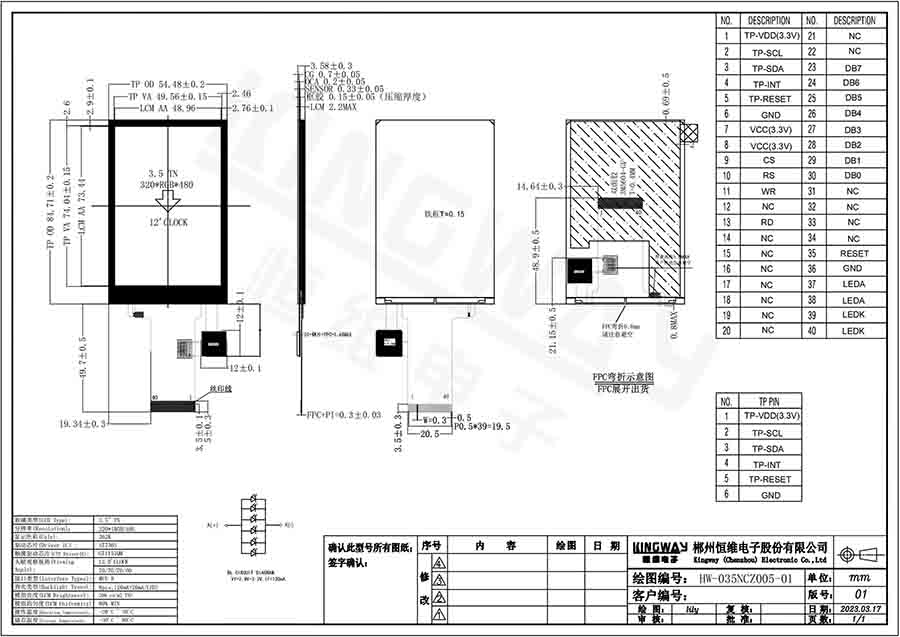

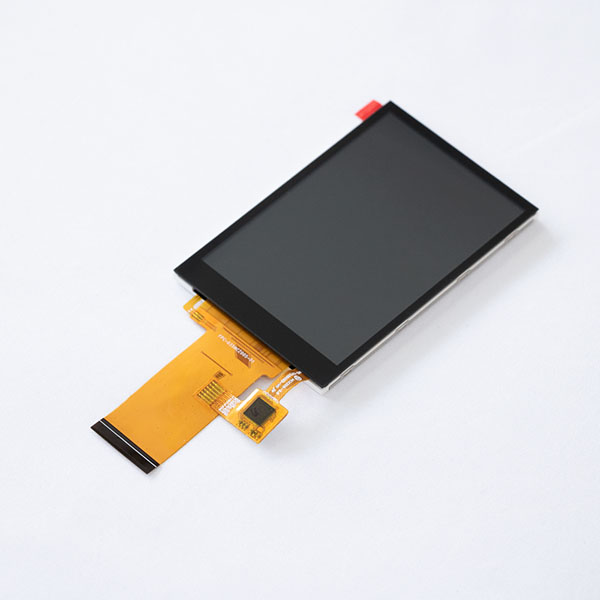

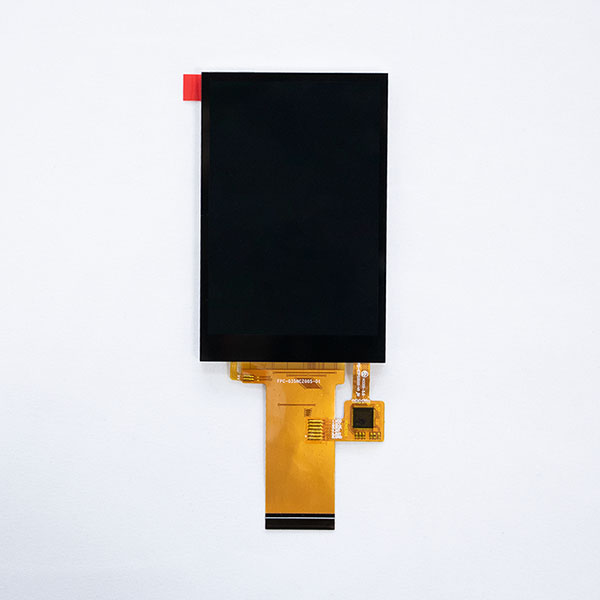

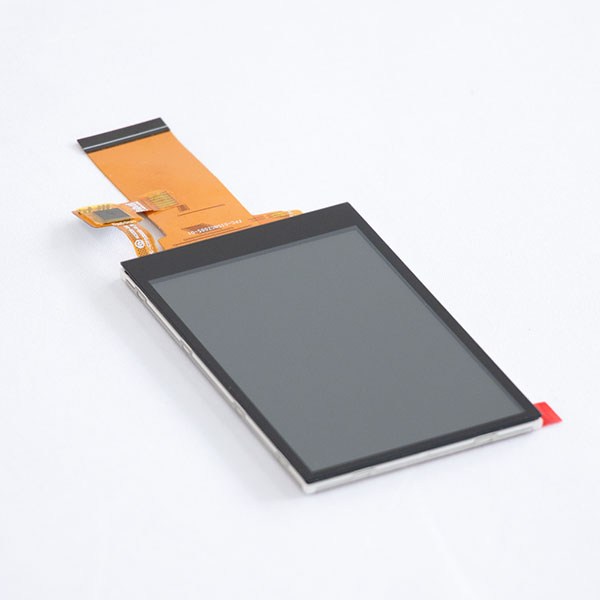

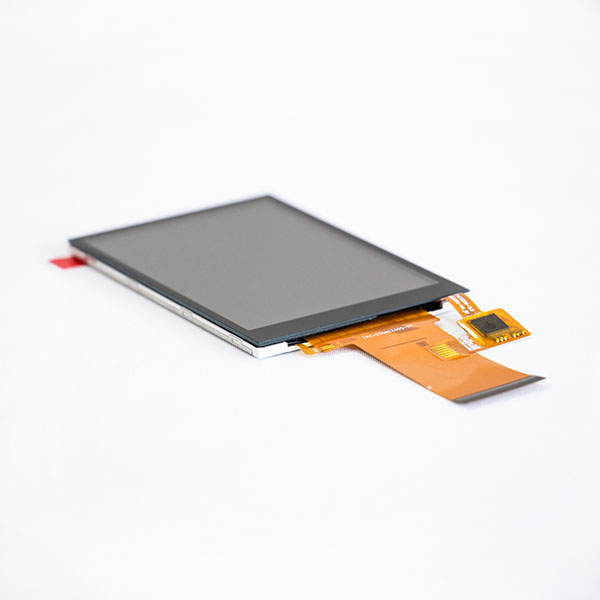

This TFT LCD liquid crystal display, with a compact overall dimension of 3.5 inches, employs TN (Twisted Nematic) technology to offer a resolution of 320x480 pixels and a vivid screen color depth of 262K. The display is powered by the ST7365 driver IC, ensuring reliable and efficient performance.
Featuring a 12 o'clock viewing direction, this LCD provides optimal visibility. The interface is facilitated through a Microcontroller Unit (MCU), ensuring seamless integration into various systems. The capacitive touch panel (CTP) is driven by the GT1151QM, enhancing the user interface with responsive touch capabilities.
The backlight system consists of 6 LEDs, individually rated at 20mA, totaling 120mA, contributing to a typical LCM brightness of 200 cd/m². Notably, the display ensures uniformity, with a minimum LCM uniformity of 80%, guaranteeing consistent and even illumination across the screen.
Operating within a wide temperature range from -20 to +70ºC and suitable for storage in environments ranging from -30 to +80ºC, this TFT LCD display exhibits robust performance in diverse conditions, making it suitable for a variety of applications.
* It is a Transmissive type color active matrix liquid crystal display (LCD).

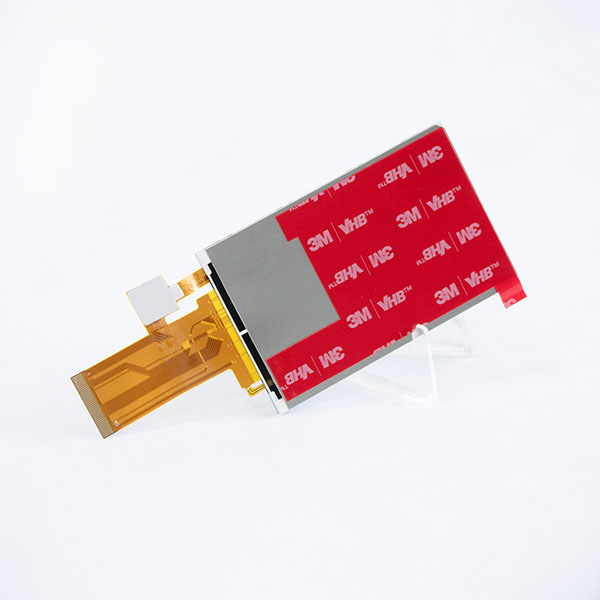

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
