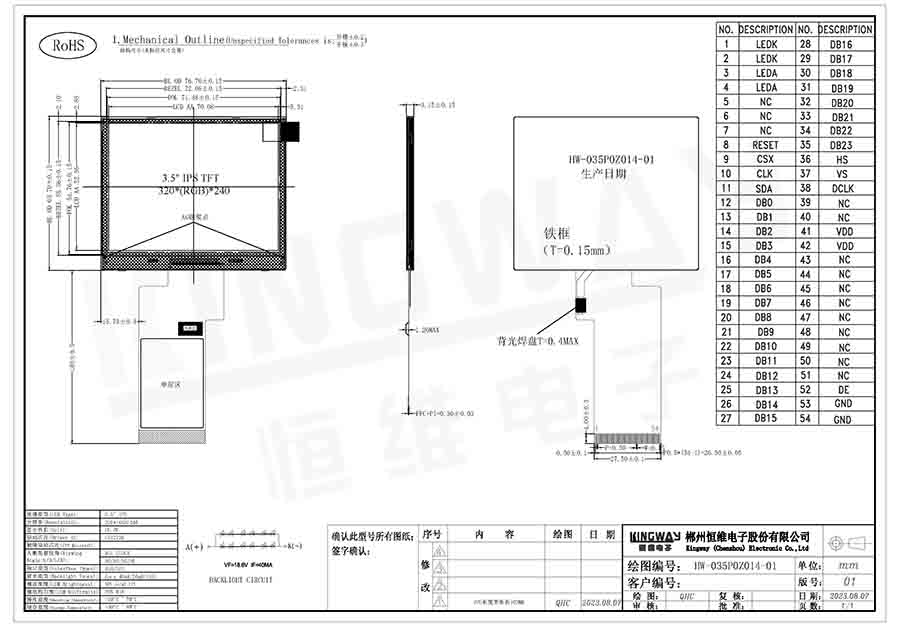

The HW-035P0Z014-01 is a 3.5-inch IPS TFT LCD display with a resolution of 320(RGB) x 240, offering vibrant visuals with 16.7M colors. With an active area of 70.08 x 52.56 mm and an outline dimension of 76.84 x 63.84 x 3.27 mm, this display is ideal for compact applications requiring high color accuracy and wide viewing angles. The all-clock viewing direction ensures that images remain clear and undistorted from any angle, making it suitable for various use cases.
Equipped with the ST7272A driver IC, the module supports both RGB and SPI interfaces, providing flexible connectivity options. The backlight system consists of 6 LEDs operating at 40mA (20mA/LED), delivering a typical brightness of 900 cd/m² and a uniformity of at least 80%, ensuring excellent visibility even in bright environments.
This display is perfect for applications such as industrial controls, medical devices, and outdoor displays, where high brightness, color accuracy, and wide viewing angles are essential.
* It is a Transmissive type color active matrix liquid crystal display (LCD).

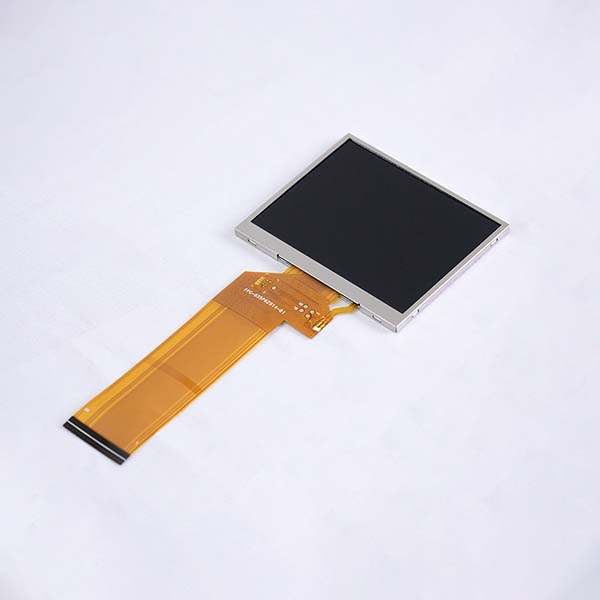

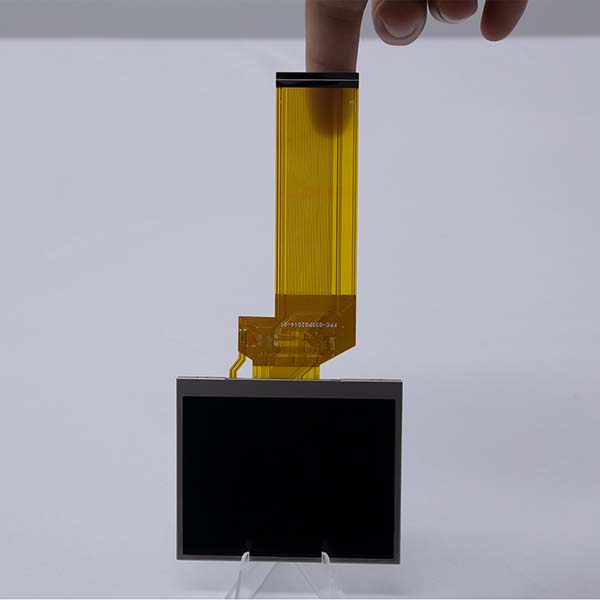

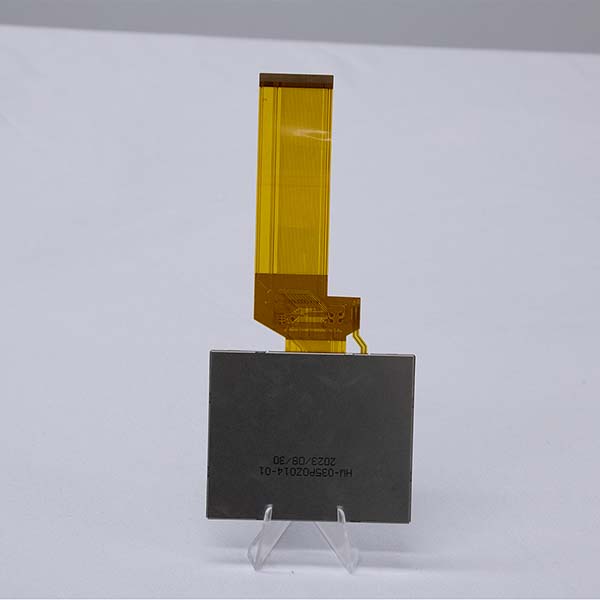

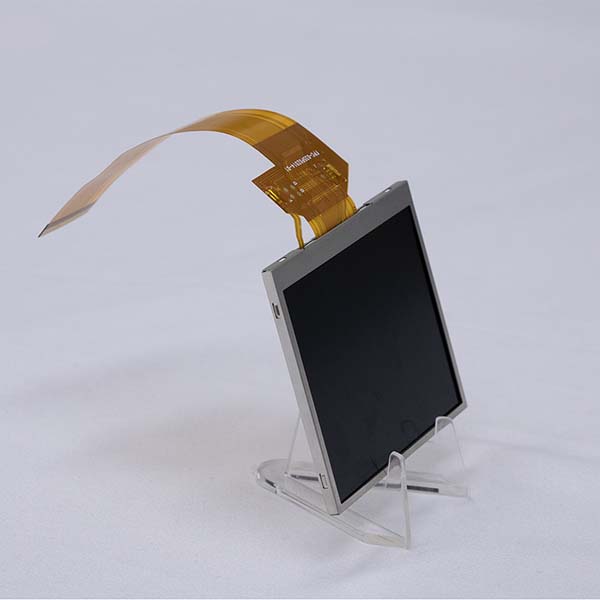

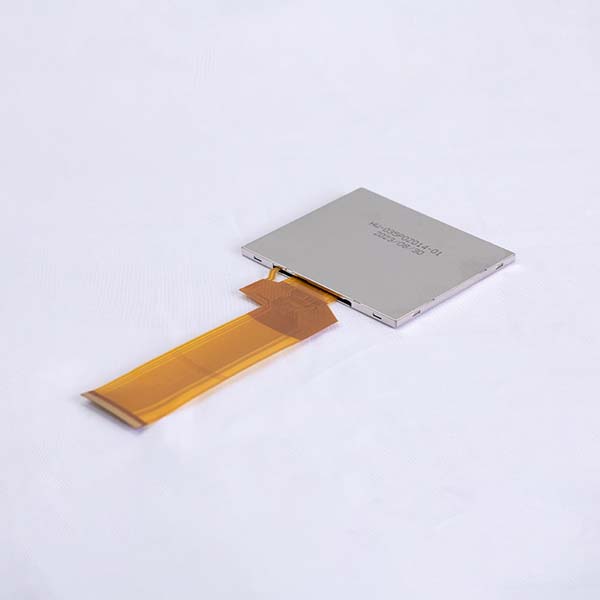

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
