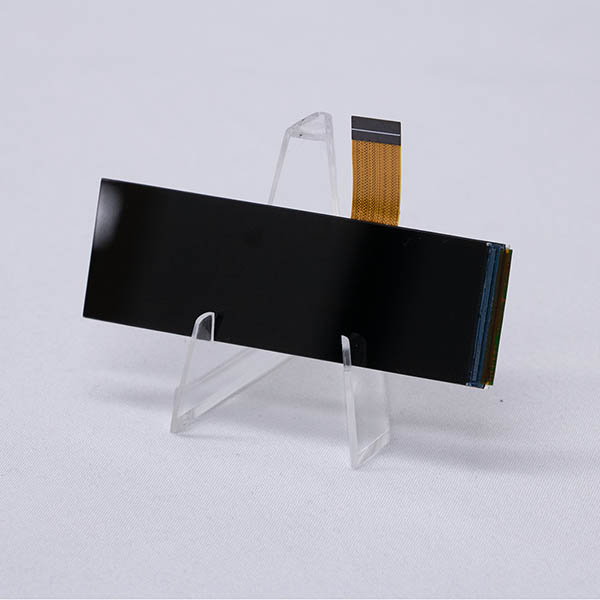

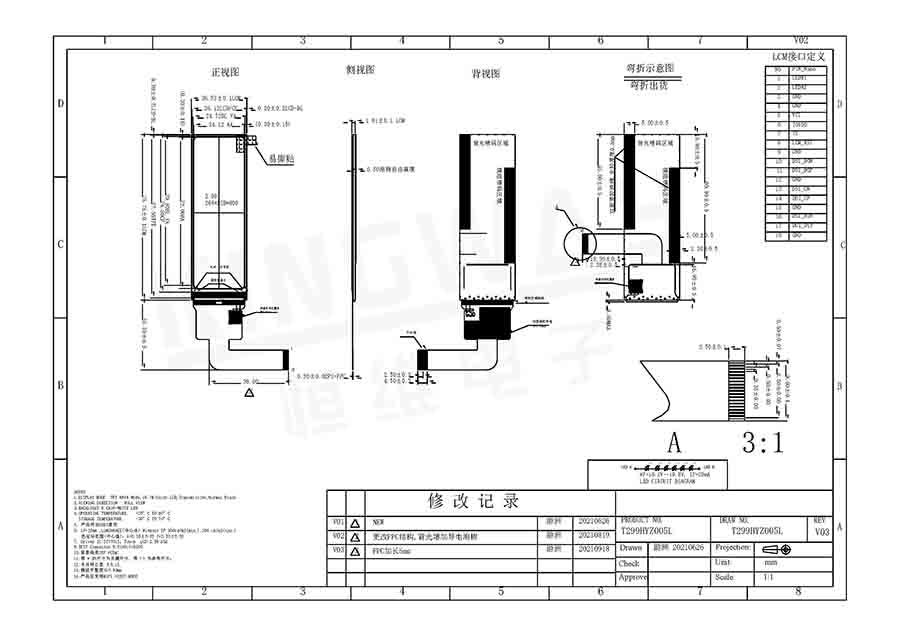

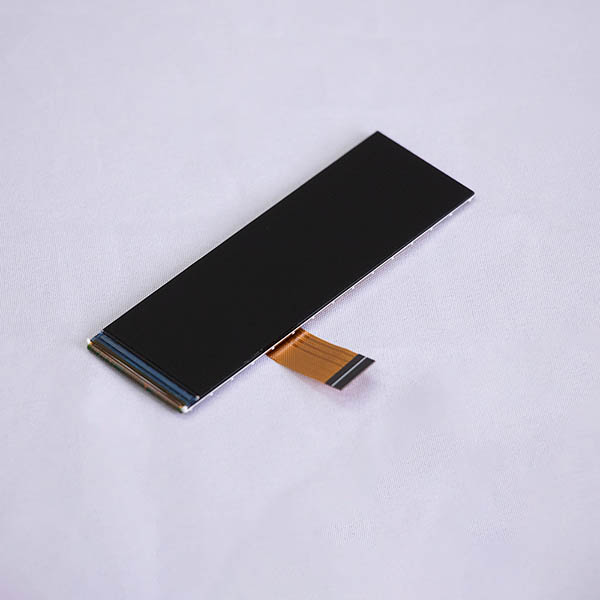

The HW-299P0Z001-01 is a 2.99-inch IPS TFT LCD display with a resolution of 268(RGB) x 800, delivering sharp and vibrant visuals with 16.7M colors. Its active area measures 24.12 x 72 mm, while the compact outline dimension of 26.52 x 78.75 x 1.61 mm makes it ideal for slim devices. The display features full viewing angles, ensuring that the screen remains clear and vivid from any direction, thanks to its all-clock viewing direction.
Powered by the ST7701S driver IC and using the MIPI video mode interface, the display provides smooth and efficient data transmission. It is designed to operate in a wide temperature range from -20°C to +70°C, with a storage temperature range of -30°C to +80°C, making it highly reliable in various environments.
This display is well-suited for applications such as wearable devices, automotive displays, and handheld electronics, where high resolution, wide viewing angles, and robust performance are essential.
* It is a Transmissive type color active matrix liquid crystal display (LCD).

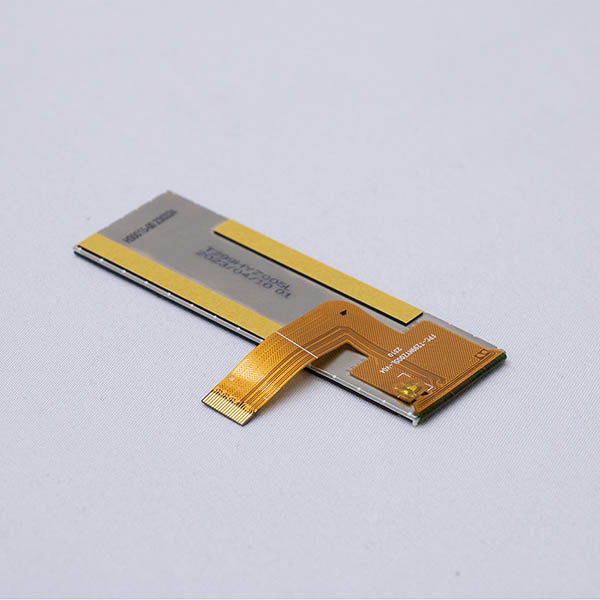

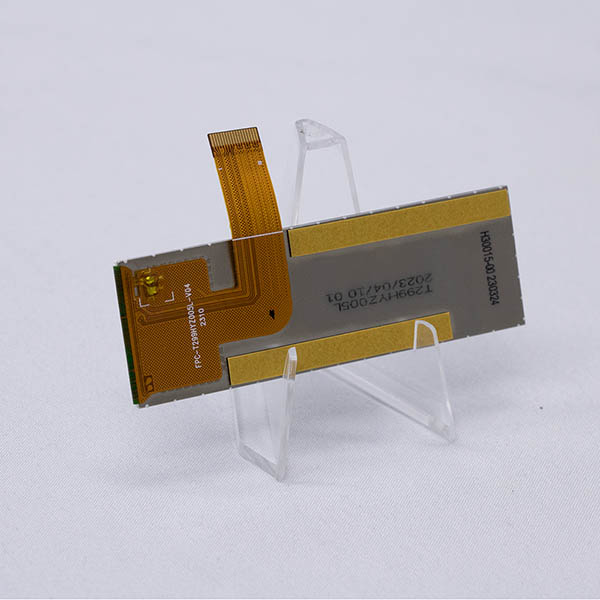

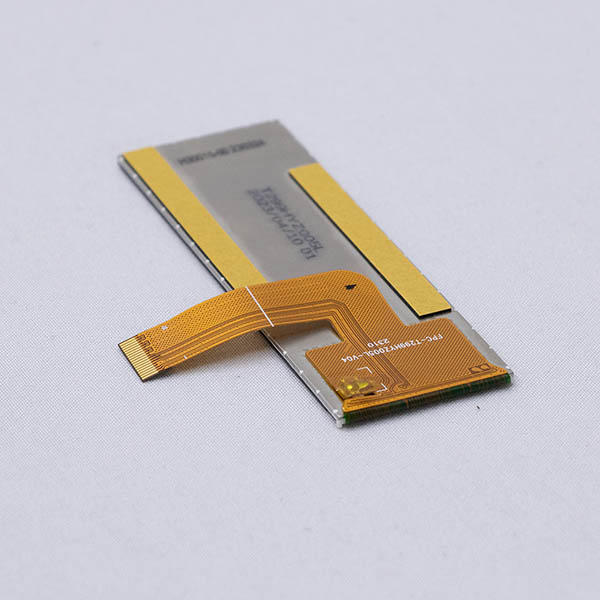

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
