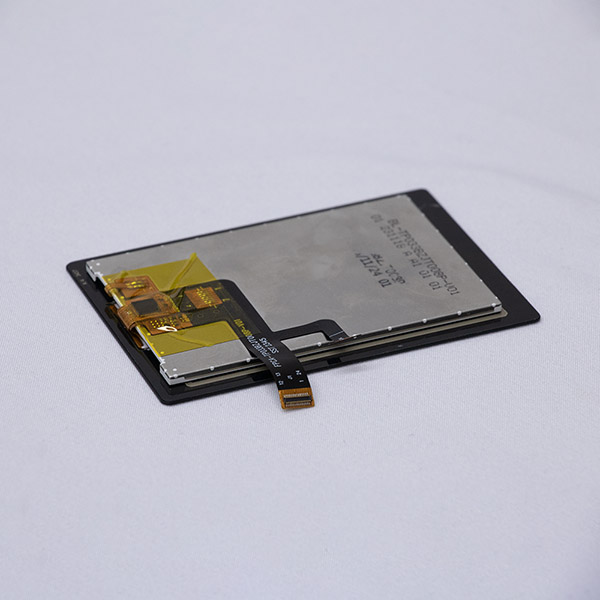

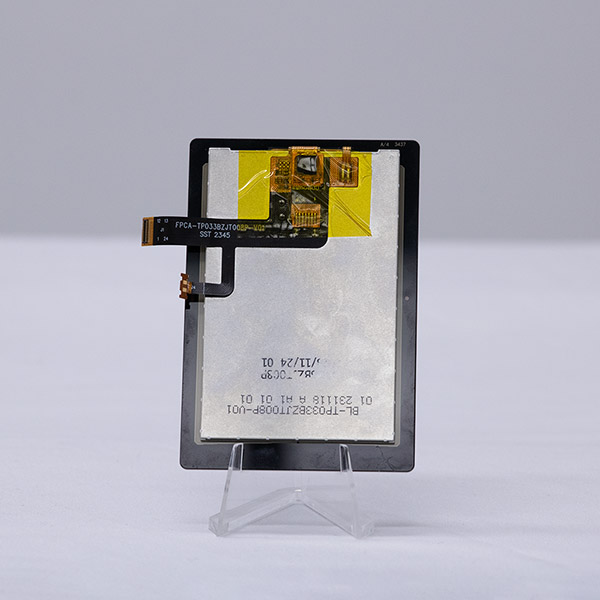

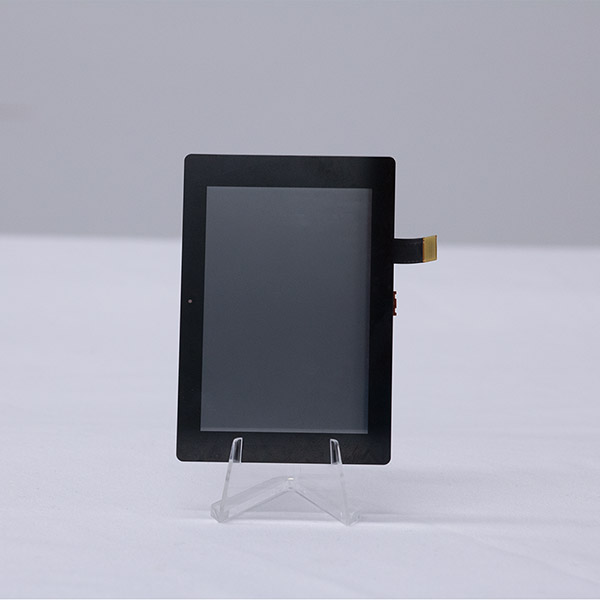

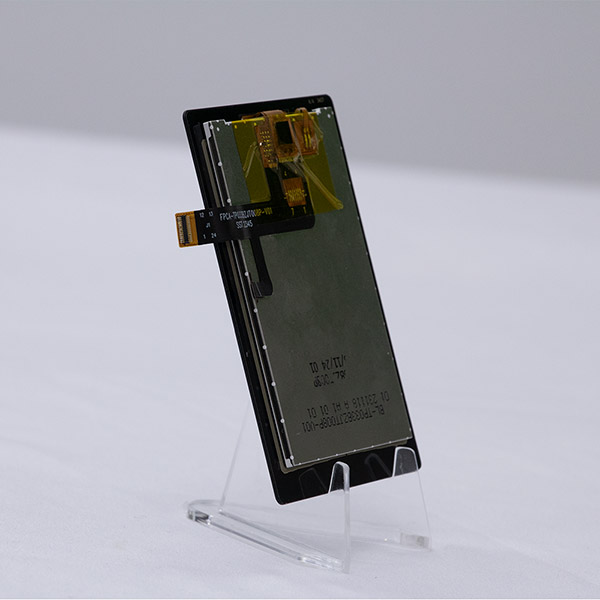

The HW-333PCZ001-01 is a 3.33-inch IPS TFT LCD display with a 320(RGB) x 480 resolution and 16.7M colors, offering sharp and vibrant visuals. Its active area is 46.46 x 69.7 mm, and it features an all-angle viewing direction for consistent image quality from any perspective. Powered by the ST7797 driver IC and using the MIPI video mode interface, it ensures smooth data transmission. With a 6-piece LED backlight and a typical brightness of 350 cd/m², it’s ideal for portable devices and control panels. The display operates in a temperature range of -20°C to +60°C, ensuring durability in various environments.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
