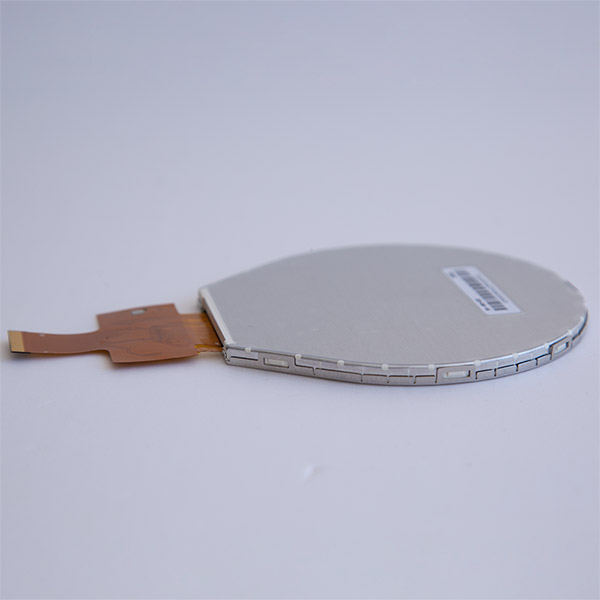

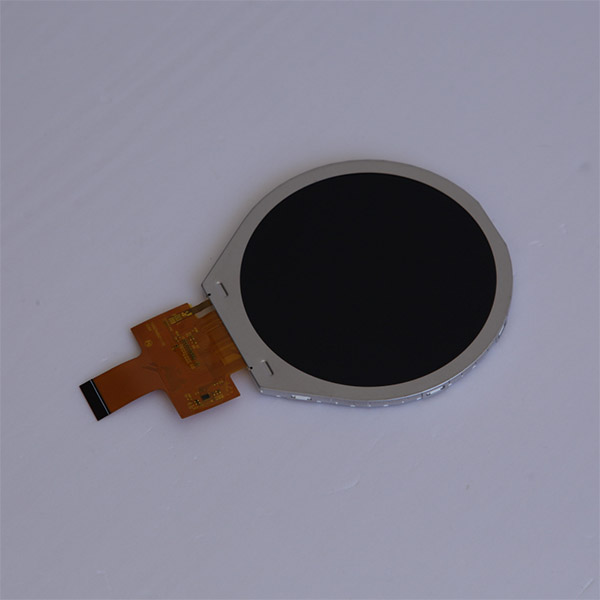

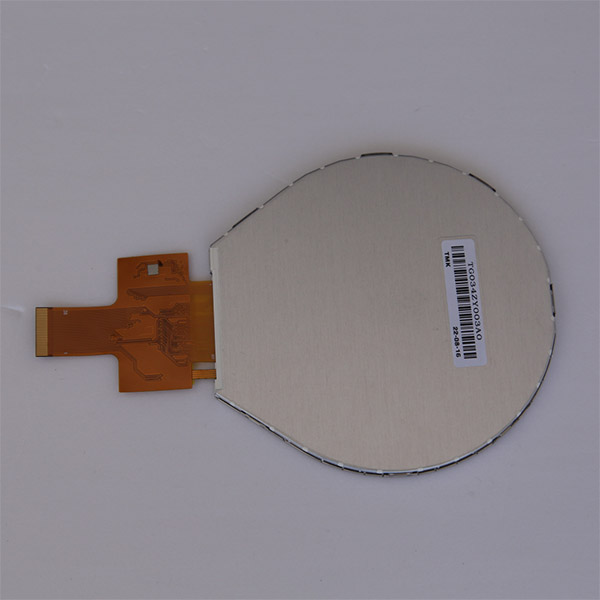

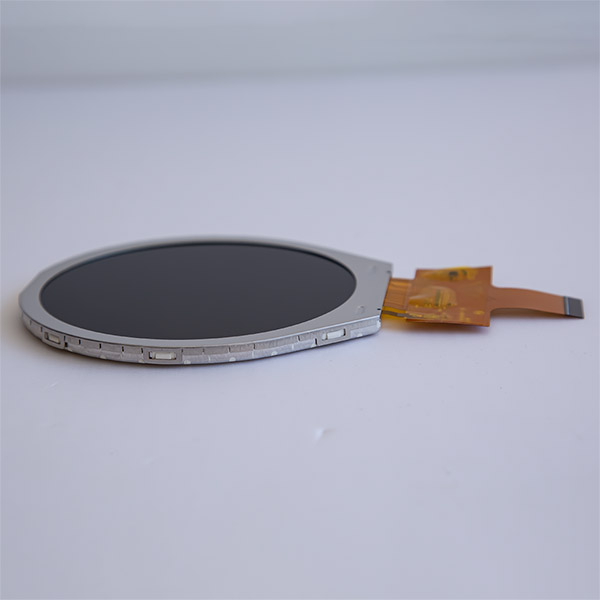

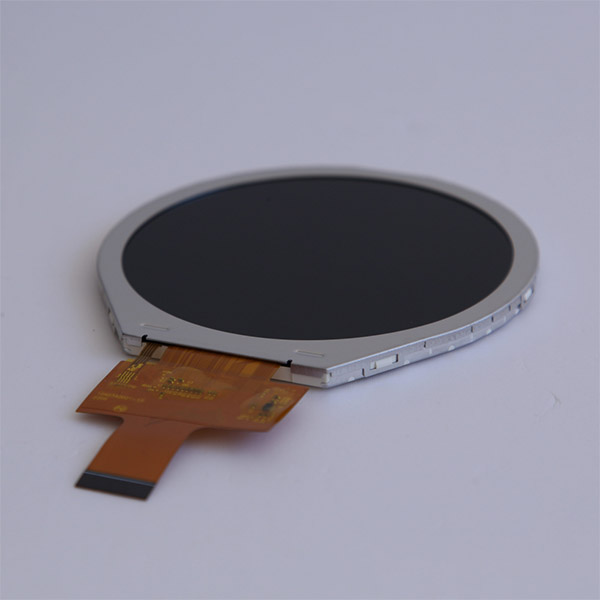

KINGWAY 3.4 Inch 800x800 Ips Round Tft Lcd Display

Model: HW-034P0W002-01

Display Size: 3.4 inch

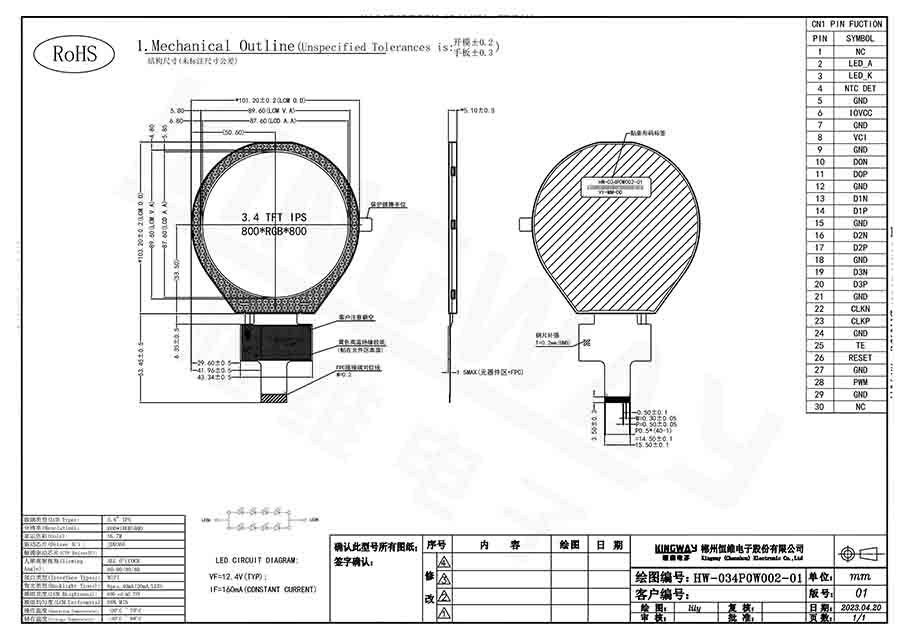

Outline Dimension: 101.2*103.2*5.1 mm

Active Area: 87.6*87.6 mm

Display Type: IPS

Resolution: 800*RGB*800

Screen Color: 16.7MB

Driver IC: JD9365

Viewing Direction: All O'clock

Interface: MIPI

Work Temperature: -20~+70℃

Storage Temperature: -30~+80℃


View details
Online ordering
Description

HW-034P0W002-01 is a circular TFT LCD (liquid crystal display) with a 3.4-inch overall dimension. Boasting IPS (In-Plane Switching) technology, this display ensures exceptional visual performance with a resolution of 800x800 pixels and an impressive screen color depth of 16.7 million.

Powered by the JD9365 driver IC, this display provides reliable and advanced control.  All O'clock viewing direction enhances visibility from any angle, making it versatile for various applications. The interface is established through MIPI, ensuring high-speed and efficient communication with compatible devices.

The backlight system comprises 8 LEDs, individually rated at 20mA, totaling 160mA, resulting in a remarkable LCM brightness range from a minimum of 800 cd/m² to a typical 1000 cd/m². This ensures vivid and clear visuals even in challenging lighting conditions. The display maintains a minimum LCM uniformity of 80%, guaranteeing consistent brightness across the entire circular screen.


12. KWM-034NCZ001-01.jpg


It is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* Backlight with different brightness is customized according to your request.

* Capacitive & Resistive touch panel/ Demo board is available for your option.

* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
