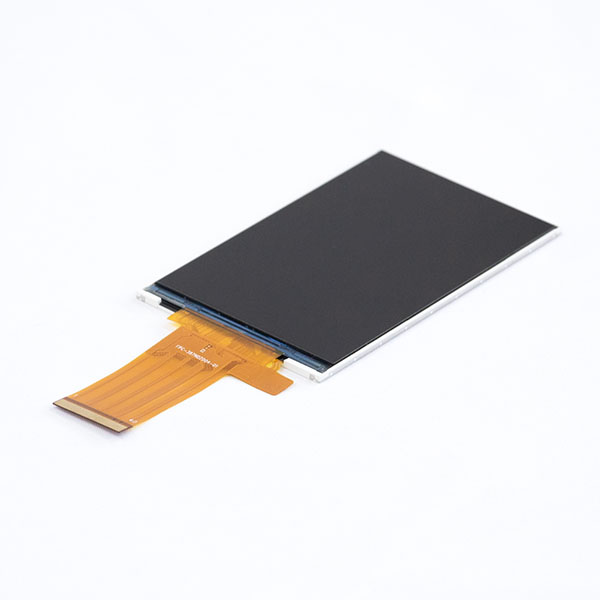

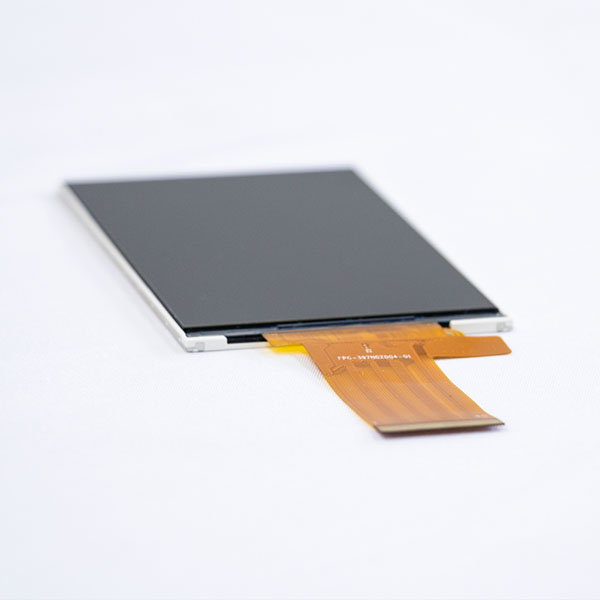

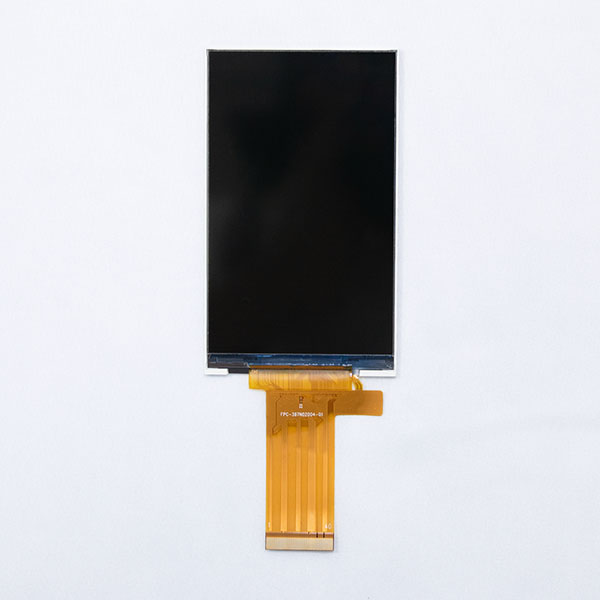

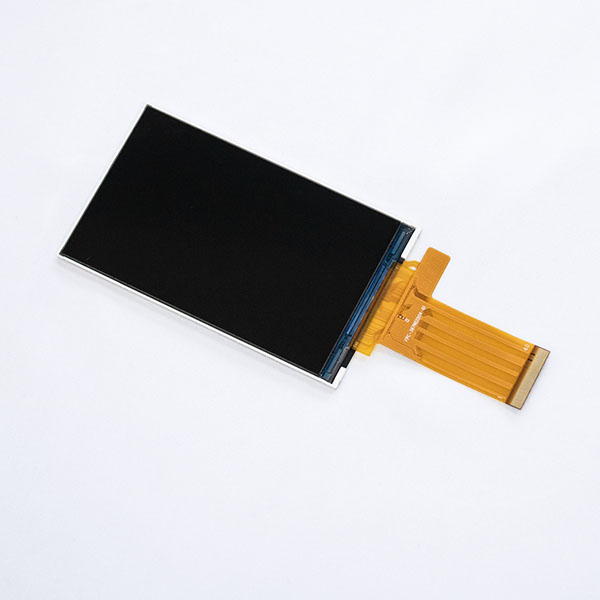

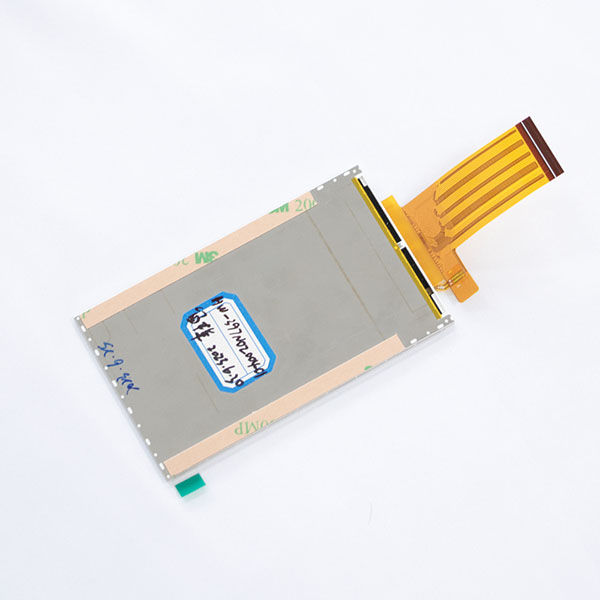

HW-397N0Z004-02 is a 3.97-inch TFT LCD display with IPS technology, offering a vibrant 480x800 resolution and 16.7 million colors. Equipped with the ST7701SN Driver IC, it ensures optimal performance. With an all o'clock viewing direction and an RGB16-Bit interface, this display provides seamless connectivity. The backlight, featuring 8 LEDs with 160mA total power consumption, ensures a bright and clear display.
With a brightness range of 300 cd/m2 minimum and 350 cd/m2 typical, combined with a minimum 80% uniformity, this TFT LCD screen delivers consistent and vivid visuals. Operating in temperatures from -20 to +70°C and suitable for storage temperatures from -30 to +80°C, it combines reliability with high performance for a superior visual experience.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
