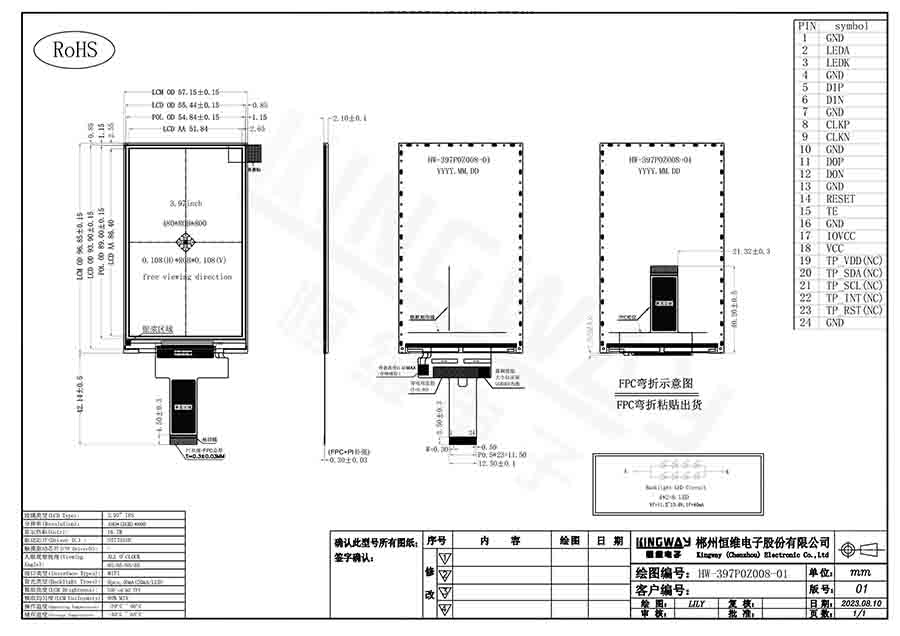

HW-397P0Z008-01 is a 3.97 inch small tft lcd module in 480x800 resolution with MIPI interface, in 24 pins, and could be customized for other pinmap. The typical value brightness of the module is 350 nits, and the minimum uniformity of the module is 80%. Backlight current is 160mA and backlight voltage is 11.2~13.6V, with 8 backlight LEDs. This 3.97 inch TFT LCD module is equipped with ST7701SN drive IC, all o'clock viewing direction, 16.7M color depth, white backlight and transmissive type. The display utilizes In-Plane Switching (IPS) technology, which provides a full viewing angle, ensuring that the screen content is easily visible from any direction without any color distortion or fading.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
