KINGWAY 4.3 Inch 480x272 Tn Tft Lcd Screen Display

Model: HW-043NRW013-01

Display Size: 4.3 inch

Outline Dimension: 105.5*67.2*4.1 mm

Active Area: 95.04*53.86 mm

Display Type: TN

Resolution: 480*RGB*272

Screen Color: 16.7M

Driver IC: NV3047

Viewing Direction: 12 O'clock

Interface: RGB

LCM Brightness: 450 cd/m2 Min, 500 cd/m2 TYP

LCM Uniformity: 75% MIN

Work Temperature: -20~+70℃

Storage Temperature: -30~+80℃


View details
Online ordering
Description

The HW-043NRW013-01 is a 4.3-inch TN TFT LCD display with a resolution of 480(RGB) x 272, providing 16.7M colors for clear and vibrant visuals. With an active area of 95.04 x 53.86 mm and an outline dimension of 105.5 x 67.2 x 4.1 mm, it’s compact yet highly effective. It offers optimal visibility with a 12 o'clock viewing direction and features the NV3047 driver IC, supporting an RGB interface. The display delivers a typical brightness of 500 cd/m² and a minimum of 450 cd/m² with 75% uniformity. It operates reliably in temperatures between -20°C and +70°C, making it ideal for industrial control systems, automotive displays, and other applications requiring durability and clear readability in varied conditions.

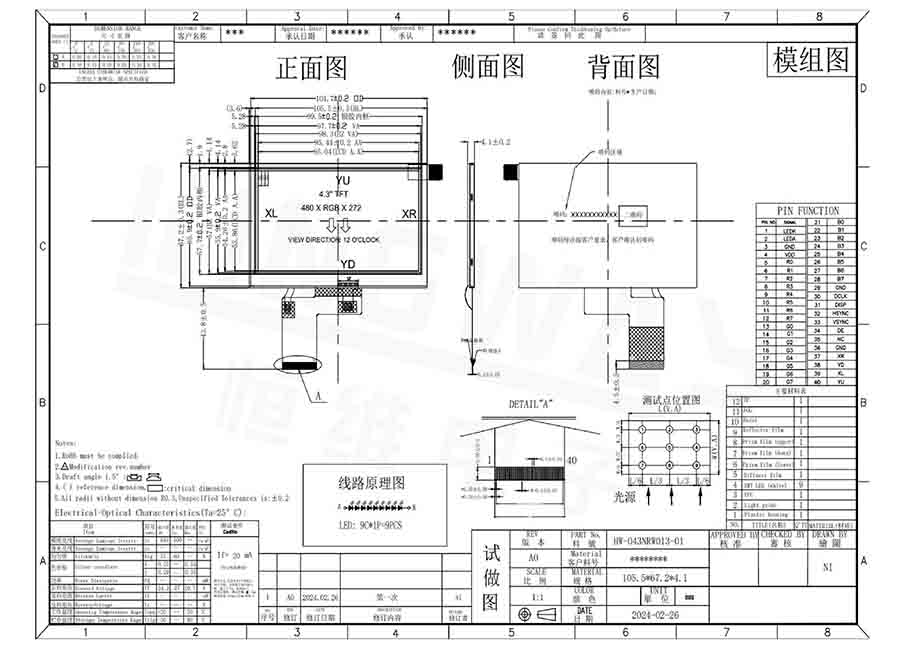

54. HW-043NRW013-01.jpg


It is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* Backlight with different brightness is customized according to your request.

* Capacitive & Resistive touch panel/ Demo board is available for your option.

* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
