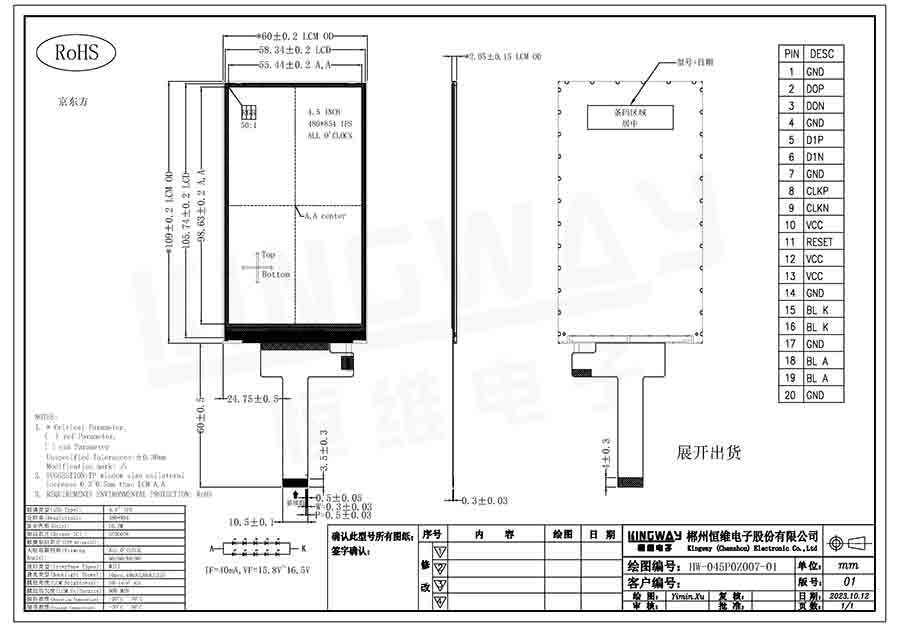

The HW-045P0Z007-01 is a 4.5-inch IPS TFT LCD display with a resolution of 480(RGB) x 854, offering vibrant and sharp visuals with 16.7M colors. It features an active area of 55.44 x 98.63 mm and an outline dimension of 60 x 109 x 2.05 mm, making it suitable for slim devices. With an all-angle viewing direction, the display ensures consistent image quality from any perspective. Powered by the GC9503V driver IC and utilizing the MIPI interface, it delivers smooth performance. The backlight system consists of 10 LEDs, operating at 40mA (20mA per LED), and provides a minimum brightness of 300 cd/m² with 80% uniformity.
This display is ideal for applications such as handheld devices, smart home interfaces, and portable medical equipment, where high color accuracy, wide viewing angles, and compact design are essential.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
