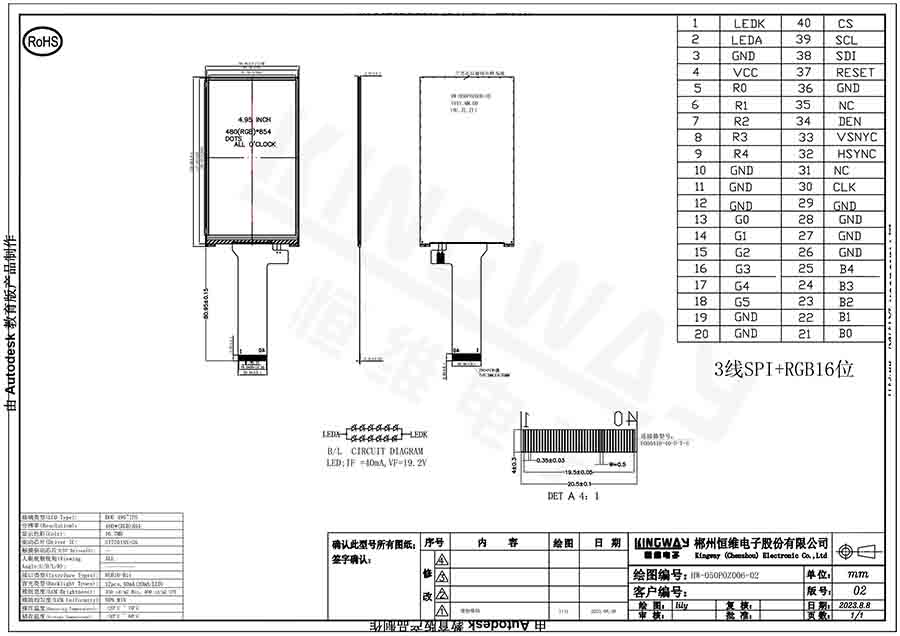

The HW-050P0Z006-02 is a 4.95-inch IPS TFT LCD display with a resolution of 480(RGB) x 854, delivering high-quality visuals with 16.7M colors. Its active area measures 61.56 x 109.53 mm, and the outline dimension is 66.4 x 120.05 x 2.07 mm, making it ideal for slim and compact devices. The all-angle viewing direction ensures clear visibility from any perspective. Powered by the ST7701SN-G5 driver IC, the display supports an RGB16-bit interface for smooth performance. With a 12-piece LED backlight system operating at 40mA (20mA per LED), it achieves a typical brightness of 400 cd/m² and a minimum of 350 cd/m², with 80% uniformity.
This display is perfect for applications such as portable electronics, industrial controls, and smart home devices, where wide viewing angles, vibrant color reproduction, and reliability in various temperature conditions are required.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
