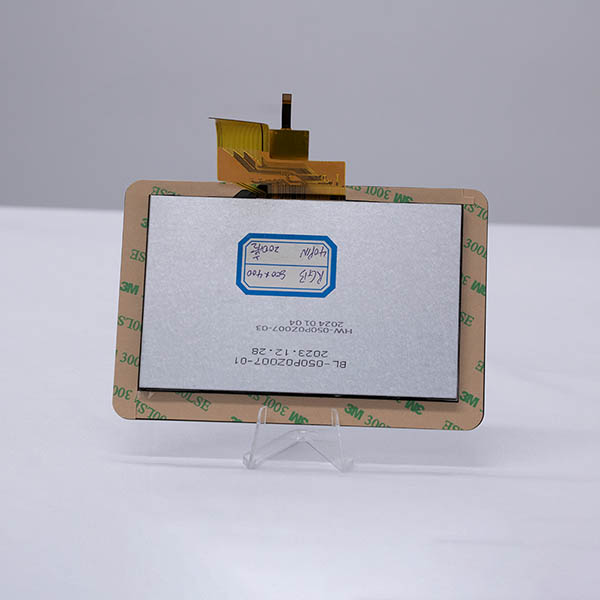

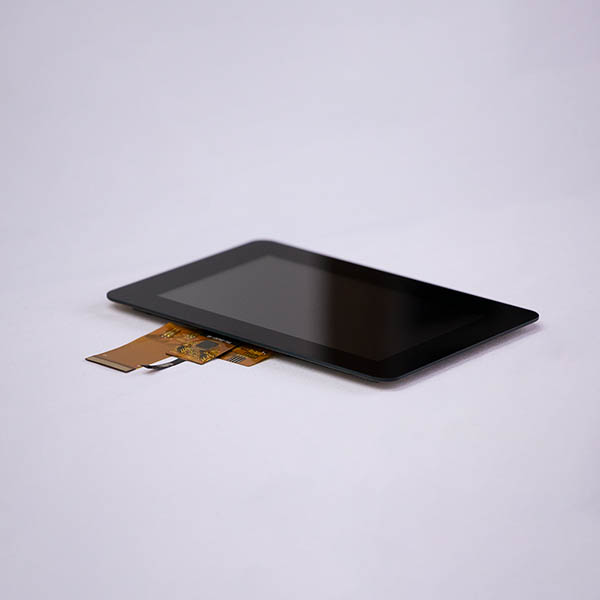

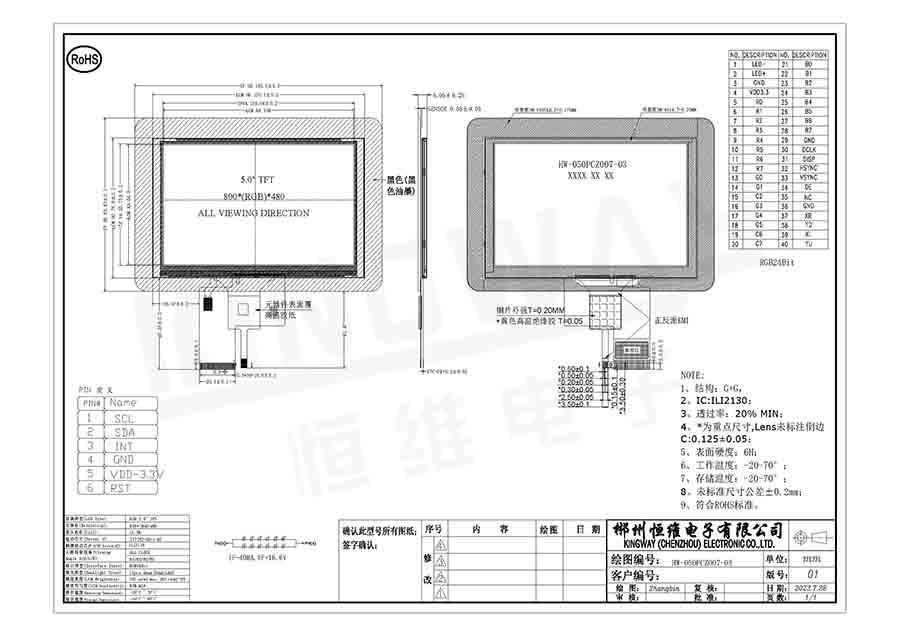

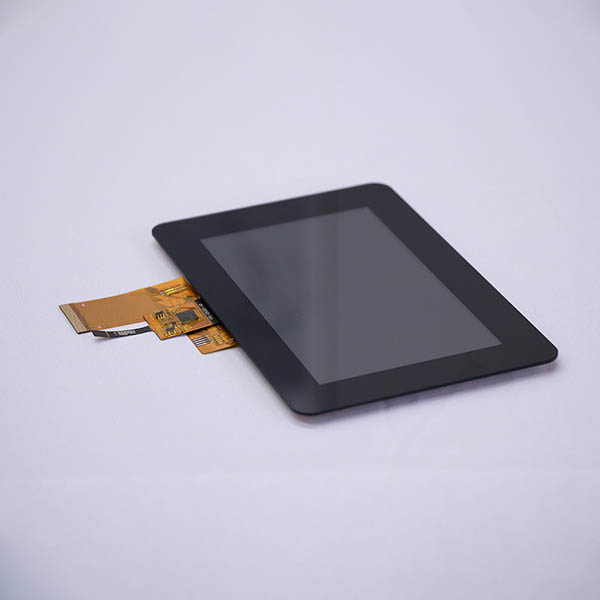

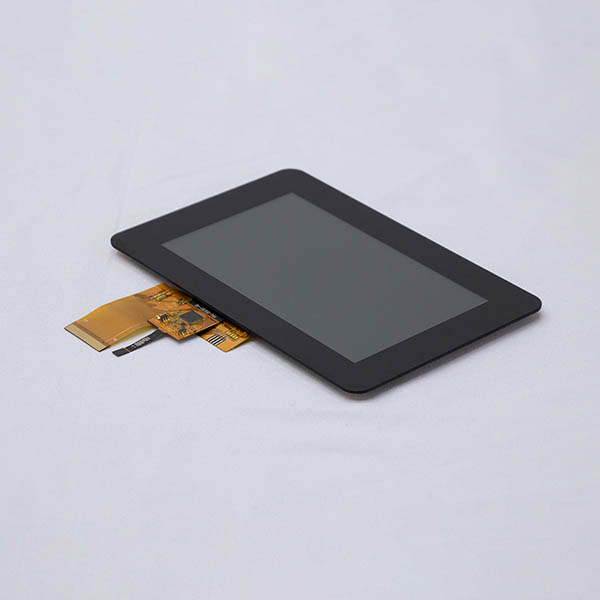

The HW-050PCZ007-03 is a 5.0-inch IPS TFT LCD display with a resolution of 800(RGB) x 480, offering vibrant visuals with 16.7M colors. The active area measures 108 x 64.8 mm, while the outline dimension is 120.7 x 75.8 x 2.75 mm. With an all-angle viewing direction, the display ensures excellent visibility from any perspective. It is driven by the ST7262-G4-1-H2 IC and supports an RGB 24-bit interface, ensuring smooth and detailed image rendering. The 12-piece LED backlight system operates at 40mA (20mA per LED), providing a typical brightness of 250 cd/m² with a minimum of 200 cd/m² and 80% uniformity.
This display is well-suited for applications such as automotive dashboards, industrial controls, and multimedia devices where vibrant colors, wide viewing angles, and reliable performance in various environmental conditions are critical.
* It is a Transmissive type color active matrix liquid crystal display (LCD).

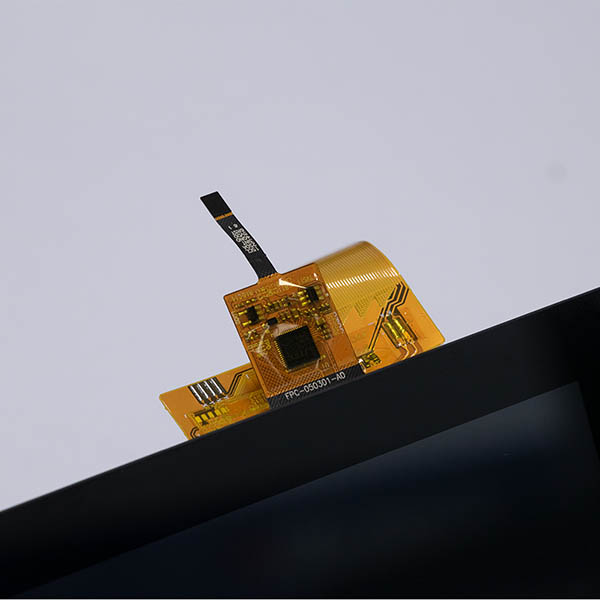

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
