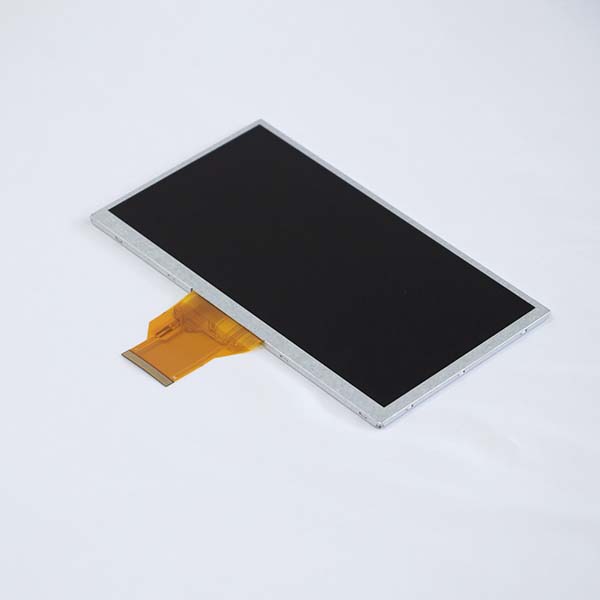

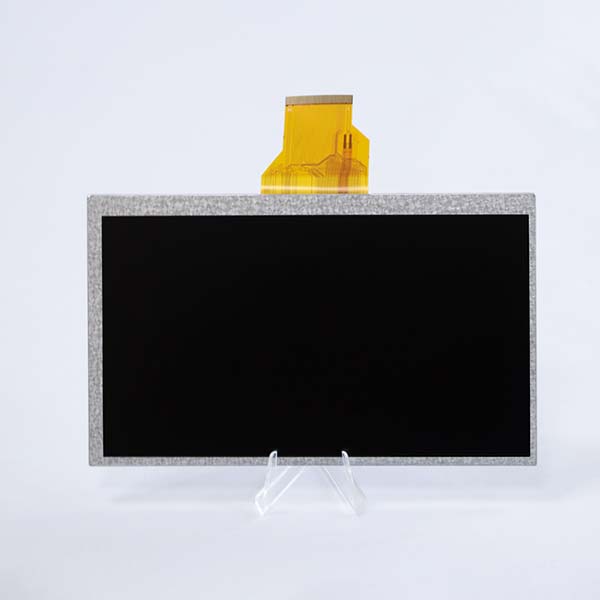

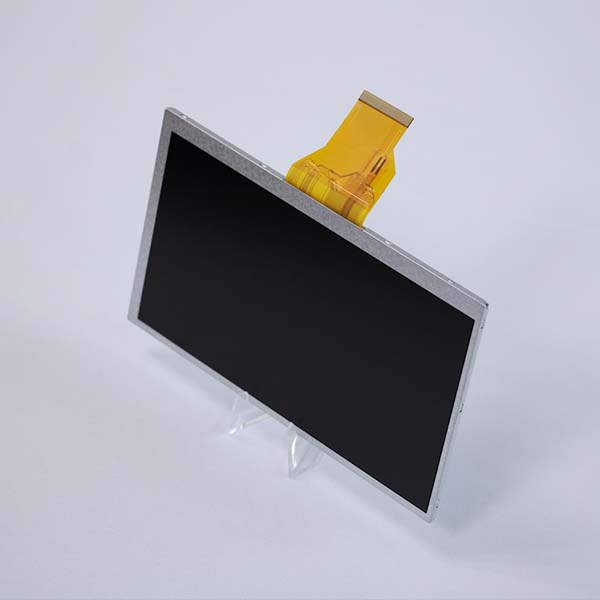

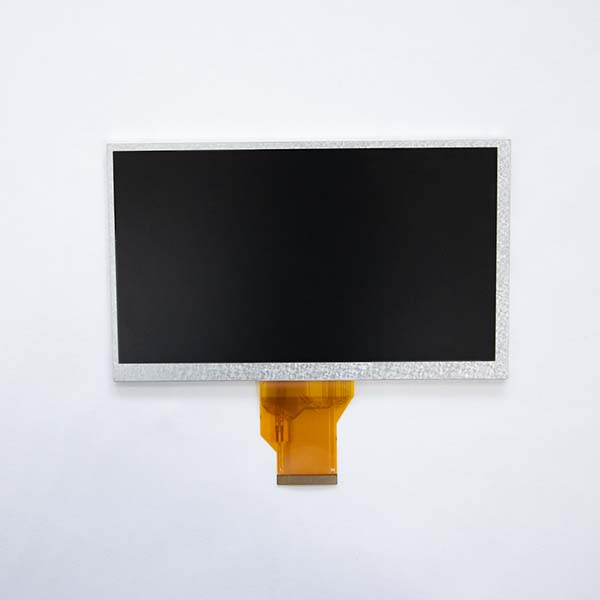

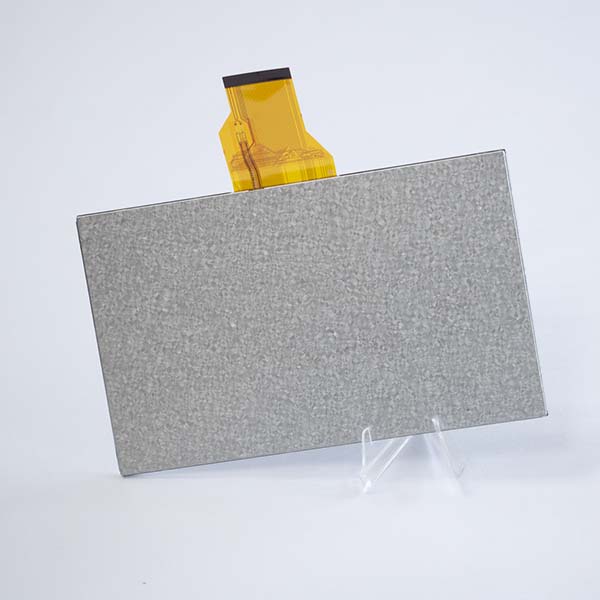

KINGWAY 7 Inch 1024x600 Liquid Crystal Display Ips Tft Lcd Screen

Model: HW-070P0Z004-01

Display Size: 7 inch

Outline Dimension: 164.86*99.96*3.30 mm

Active Area: 154.21*85.92 mm

Display Type: IPS

Resolution: 1024*RGB*600

Screen Color: 16.7M

Driver IC: EK79001HN+EK73215

Viewing Direction: All O'clock

Interface: RGB-24Bit

Backlight Type: 27pcs, 20mA(180mA/LED)

LCM Brightness: 350 cd/m2 Min, 400 cd/m2 TYP

LCM Uniformity: 80% MIN

Work Temperature: -20~+70℃

Storage Temperature: -30~+80℃


View details
Online ordering
Description

HW-070P0Z004-01 is a 7 inch square tft lcd module in 1024x600 resolution with RGB-24Bit interface, in 50 pins, optional capacitive touch panel with controller, connector and optional 4-wire resistive touch panel screen with connector. This 7 inch TFT LCD module is equipped with EK79001HN+EK73215 drive IC, all o'clock viewing direction, 16.7M color depth, white backlight and transmissive type. The typical value brightness of the module is 400 nits, and the minimum uniformity of the module is 80%. Backlight current is 180mA and backlight voltage is 9.6V, with 27 backlight LEDs.

It can be used in any embedded systems, car, mp4, gps, industrial device, security and hand-held equipment which requires display in high quality and colorful image.

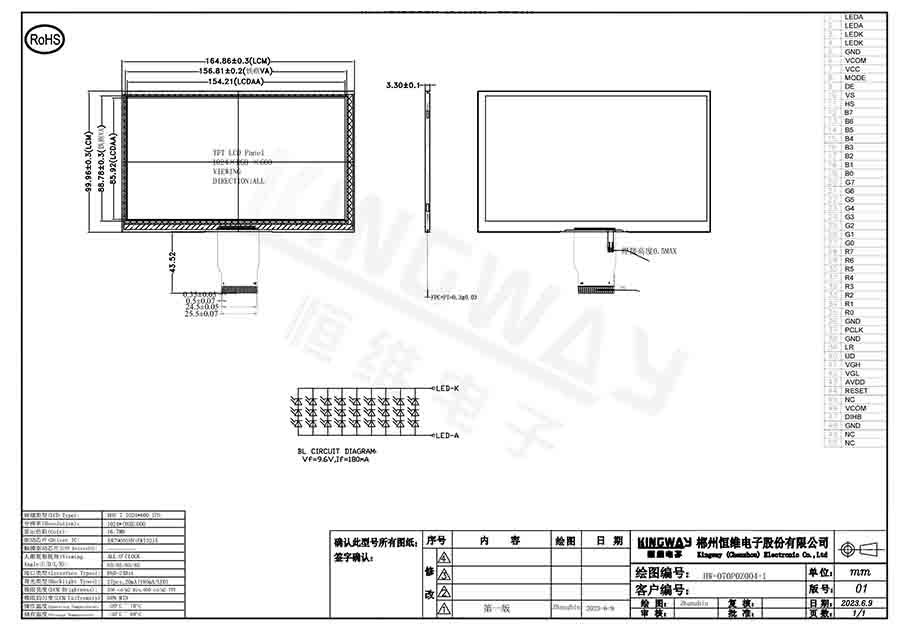

33. HW-070P0Z004-01.jpg


It is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* Backlight with different brightness is customized according to your request.

* Capacitive & Resistive touch panel/ Demo board is available for your option.

* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
