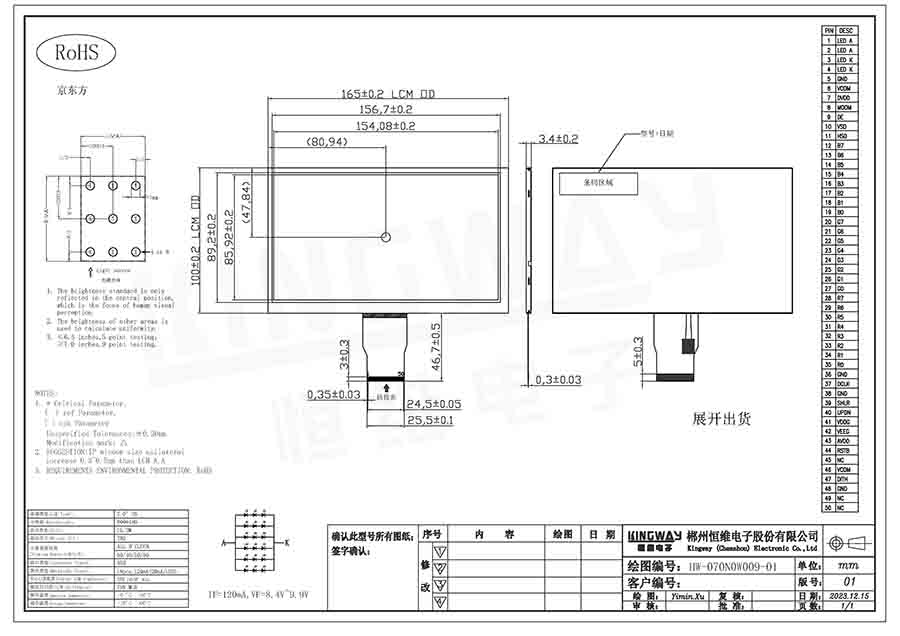

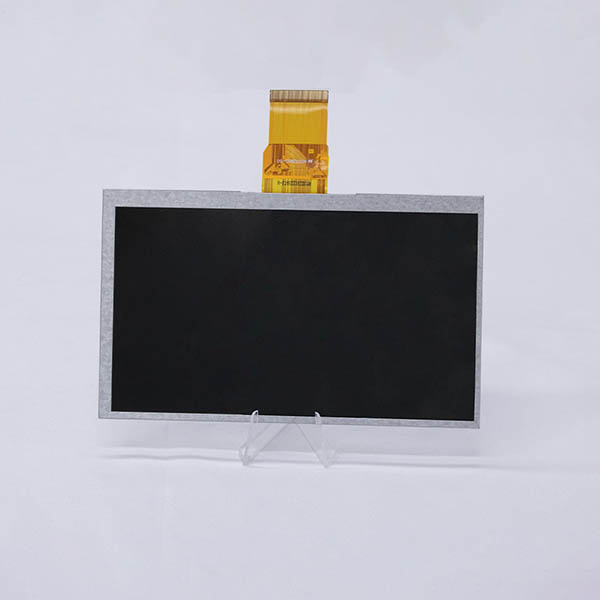

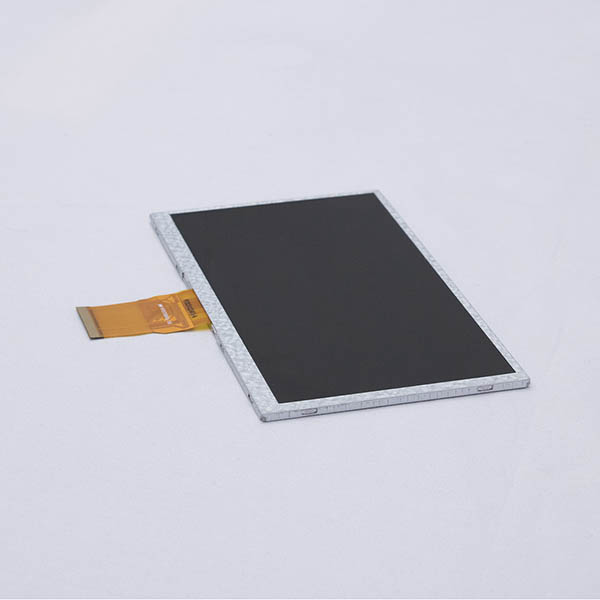

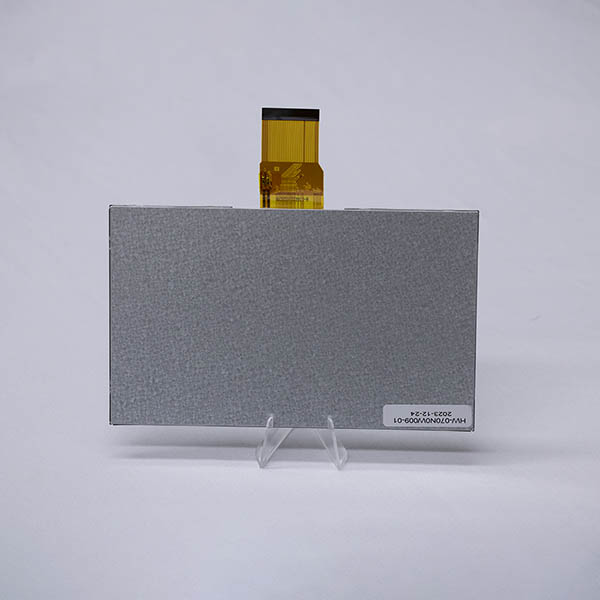

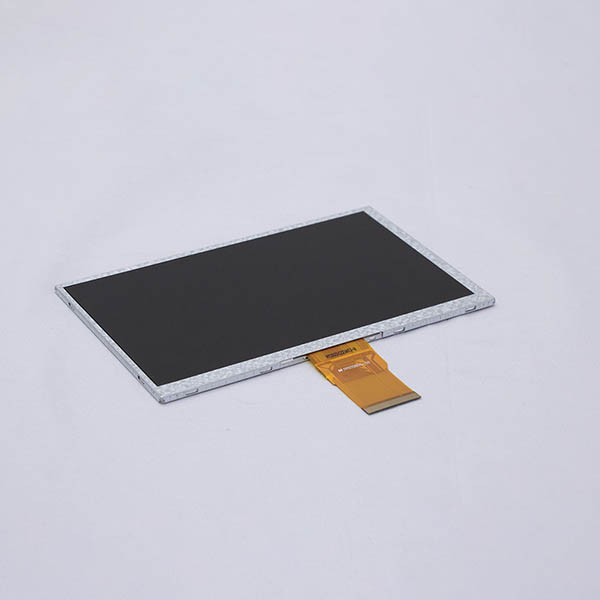

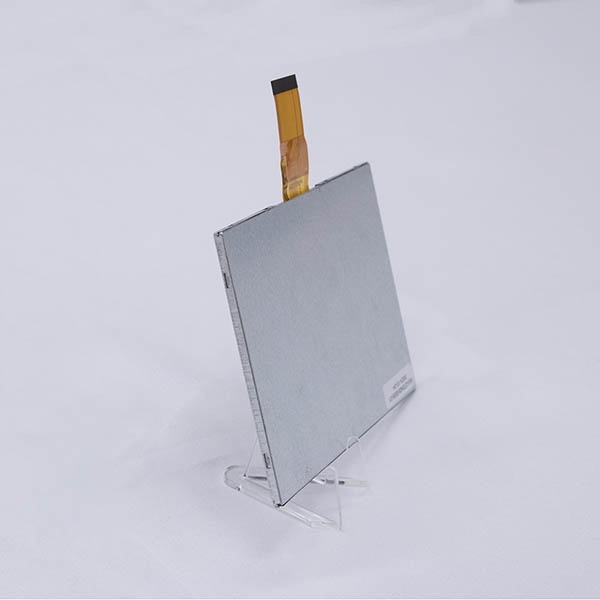

The HW-070N0W009-01 is a 7-inch TN TFT LCD display with a resolution of 800(RGB) x 480, delivering vibrant visuals with 16.7M colors. It features an active area of 154.08 x 85.92 mm and an outline dimension of 164.9 x 100 x 3.25 mm. With full viewing angles, the display ensures consistent image quality from any direction. Powered by the EK79001H and EK73215BCGA driver ICs, it supports an RGB interface for smooth data transmission. The backlight system consists of 18 LEDs, operating at 120mA (20mA per LED), providing a minimum brightness of 200 cd/m² with 75% uniformity.
This display is suitable for applications like automotive displays, industrial equipment, and smart home devices, offering reliable performance and clear visibility in a variety of environments.
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
